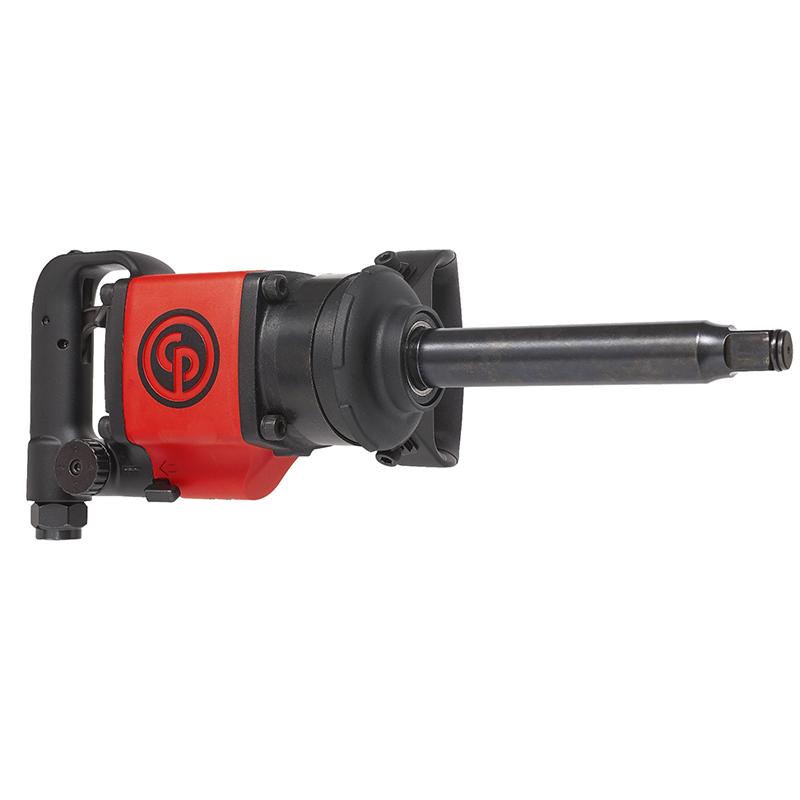

Chicago Pneumatic 3/4 in. 1070 Ft lb Extended Impact Wrench with ring retainer, 6600 rpm

CP7763D-6

CP7763D-6, 3/4 in. 1070 Ft lb Extended Impact Wrench with ring retainer, 6600 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!

Benefits
  • Great Performance
  • Lightweight
  • Comfort
  • Easy to Use
  • Rugged and Robust
  • Easy Operation
Features
  • 16.1 lbs. – 7.3 kg
  • 1300 ft.lbs. / 1760 Nm in reverse
  • Twin hammer mechanism
  • Steel motor
  • Intuitive Forward / Reverse lever & power regulator on both sides
  • 4 position power settings on both sides
  • Side handle with soft touch grip
  • Down exhaust
  • Aluminum housing
  • Composite cover on the clutch housing
  • Socket retainer ring
Back

Technical Specifications

SKU: 8941077637-CP
Model
CP7763D-6
Type
Extended Impact Wrench
Manufacturer
Chicago Pneumatic
Length (mm)
445
Min Torque (Ft Lb)
250
Free Speed (RPM)
6600
SKU
8941077637
Stock Code
2
Air Inlet
1/2 in.
Clutch Type
Twin hammer
Maximum Torque Reverse (ft lb)
1300 ft lbs
Max Torque (Ft Lb)
1070
Min Torque (Nm)
340
Max Torque (Nm)
1450
Square Drive
3/4 in.
Min Hose Size (in)
3/8
Weight (lbs)
16.1
Side to Center (in)
1.8
Handle Type
D-Handle, Inside Trigger
Retainer Type
Friction ring
