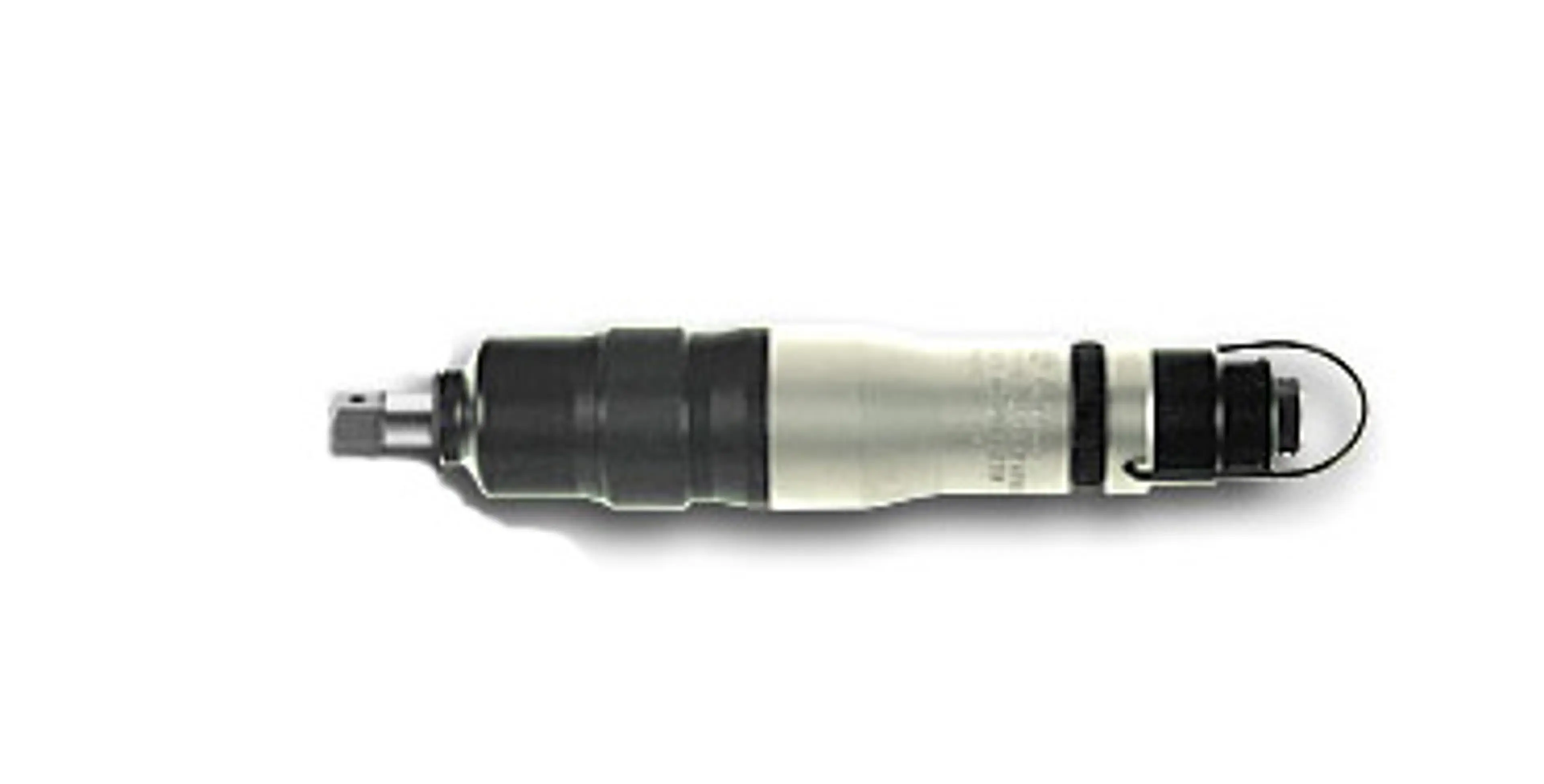

Alpha-60S | 23 - 36 Ft Lbs Inline, Non-Shut Off, Pulse Screwdriver

SKU:
Alpha-60S
Condition:
New
On Sale
Now: $1,612.00
Was: $1,649.00
Technical Specifications

Description

Features

  • Designed to minimize torque spike on hard joint applications or where tool weight or application access is a concern
  • Provides increased power under load with the 9-blade double-chamber motor and patented double-blade pulse mechanism
Productivity
  • High speed rundown reduces fastening time
  • One hand operation frees the other for productive use
    Specifications: Model: ALPHA-60S Air Consumption - ft3/min: 15.8 Air Hose Size - in: 3/8 Air Inlet Thread N.P.T. - in: 1/4 Free Speed - rpm: 7,000 Noise Level - dB(A): 80 Overall Length (approx) - in: 9.5 Overall Length (approx) - mm: 241 Square Drive - in: 3/8 Torque Range - ft lbs: 23.1 ~ 36.1 Torque Range - Nm: 32 ~ 50 Weight less Socket - kg: 0.9 Weight less Socket - lb: 2.0
  • Ergonomic benefits reduce fatigue and increase productivity
  • Quick and easy forward and reverse operation with single-hand reverse lever

Ergonomics

  • Virtually no reaction impulse during and after fastener rundown
  • Fast rundown reduces operator exposure
  • Low vibration and sound levels due to absence of metal-to-metal contact
  • High power to weight ratio
  • Anti-vibration jacket handle provides comfortable operator handling
  • Exhaust silencer with combined one-piece air inlet bushing
  • Quick and easy forward and reverse operation with single-hand reverse lever

Reliability

  • No mechanical clutch or hard part engagement for low maintenance and longer life
  • Extended socket and extension life
  • No air line lubrication with oil-free rotor blades

Quality

  • Built-in torque adjuster matches each application for required torque and fastening time
  • Extremely accurate on properly designed joints
  • Excellent clamp force repeatability
  • Torque adjustment on outside of tool
  • Monitoring available for process verification
  • No oil film on finished work piece with oil-free rotor blades


Recommended Air Pressure: 85 psi

NOTE: Torque ranges reflect residual B joint torque values.
