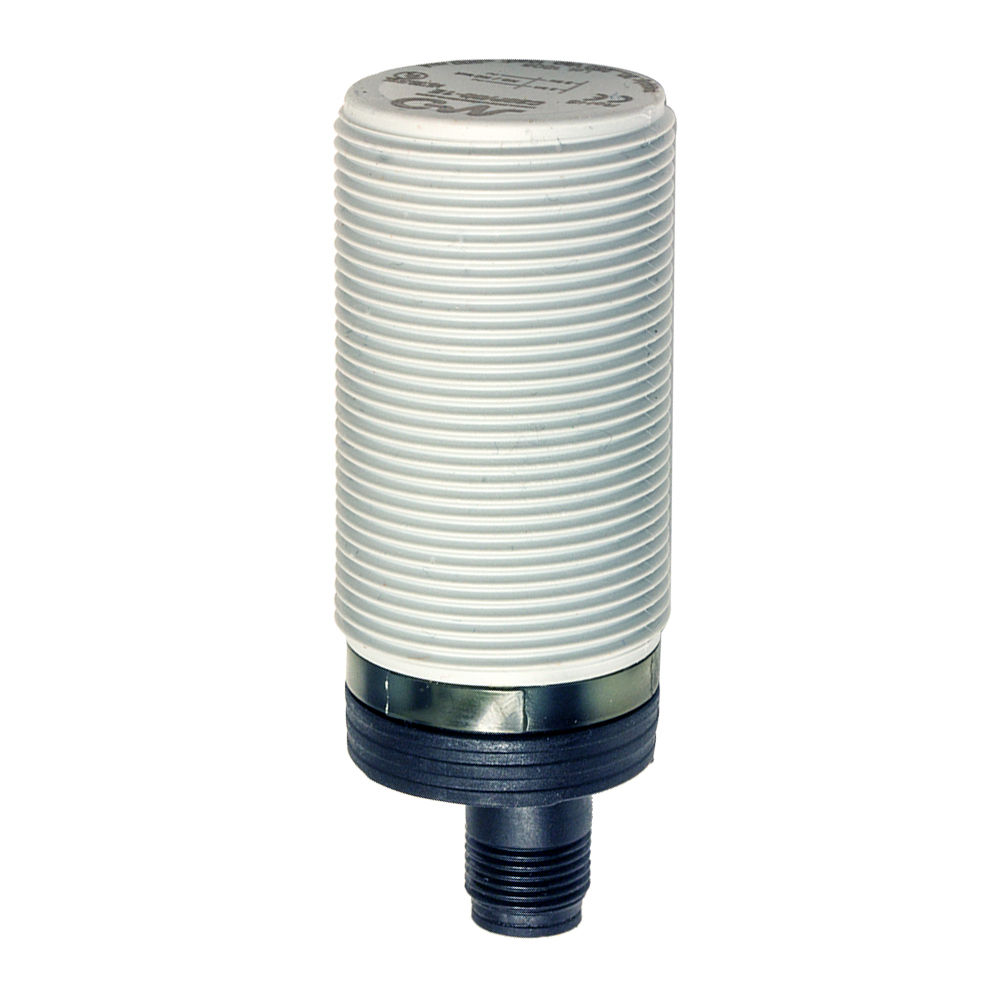

C30P/BN-1E | Capacitive sensor M30 Plastic Shielded DC 16mm NPN NO+NC conn. M12
Technical Specifications
SKU: C30P/BN-1E-datalogic
Nominal Sensing Distance
2 - 16 mm
Thermal Drift of Sr
< 20%
Repeat Accuracy
5%
Sensitivity Adjustment
Yes
Hysteresis
20%

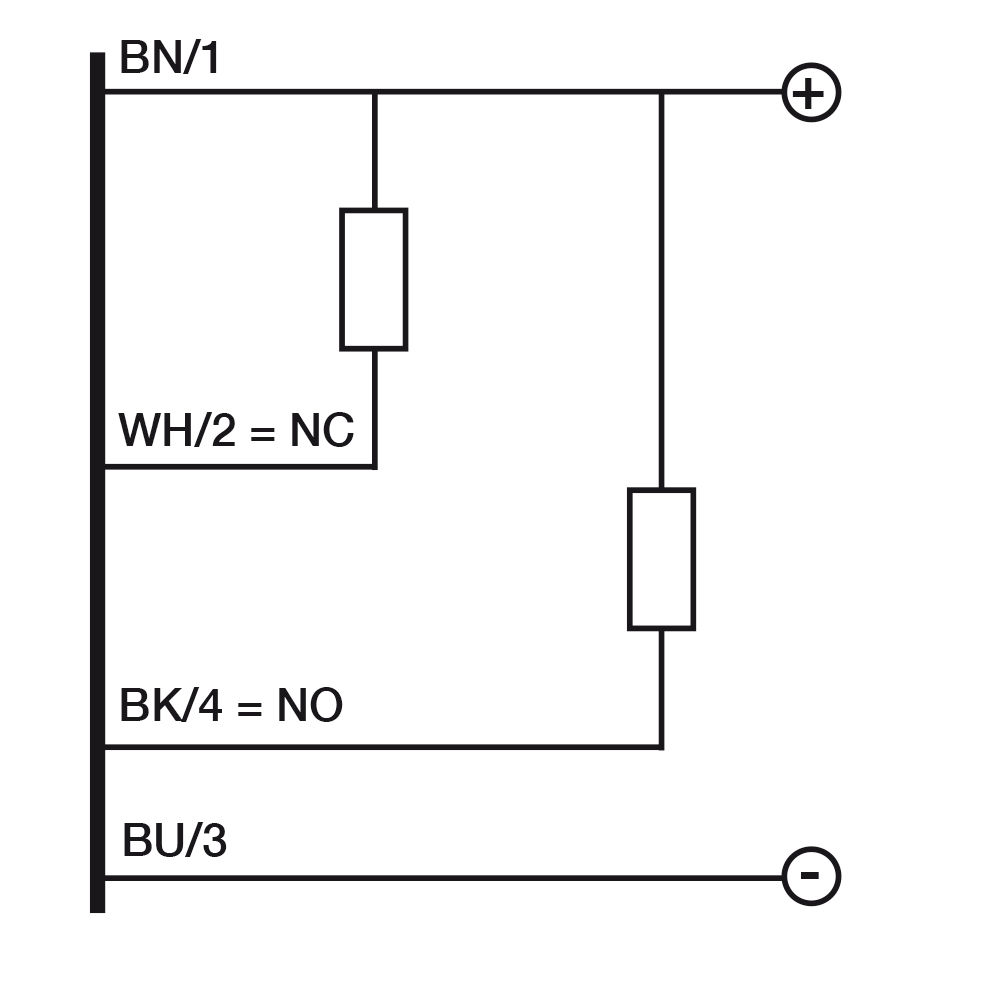

Output Type
NPN
Output Function
NO + NC
Switching Frequency
30 Hz
Operating Voltage
10 - 40 Vdc
No-Load Supply Current
12 mA
Load Current
200 mA
Leakage Current
100 µA
Maximum Ripple Content
10%
LED Indicators
Yellow LED (object detected)
Time Delay Before Availability
200 ms
Short-Circuit Protection
Yes, autoreset
Reverse Polarity Protection
Yes
Impulsive Overvoltage Protection
Yes
Mounting
Shielded
Weight
100 g
Housing Material
Polyester

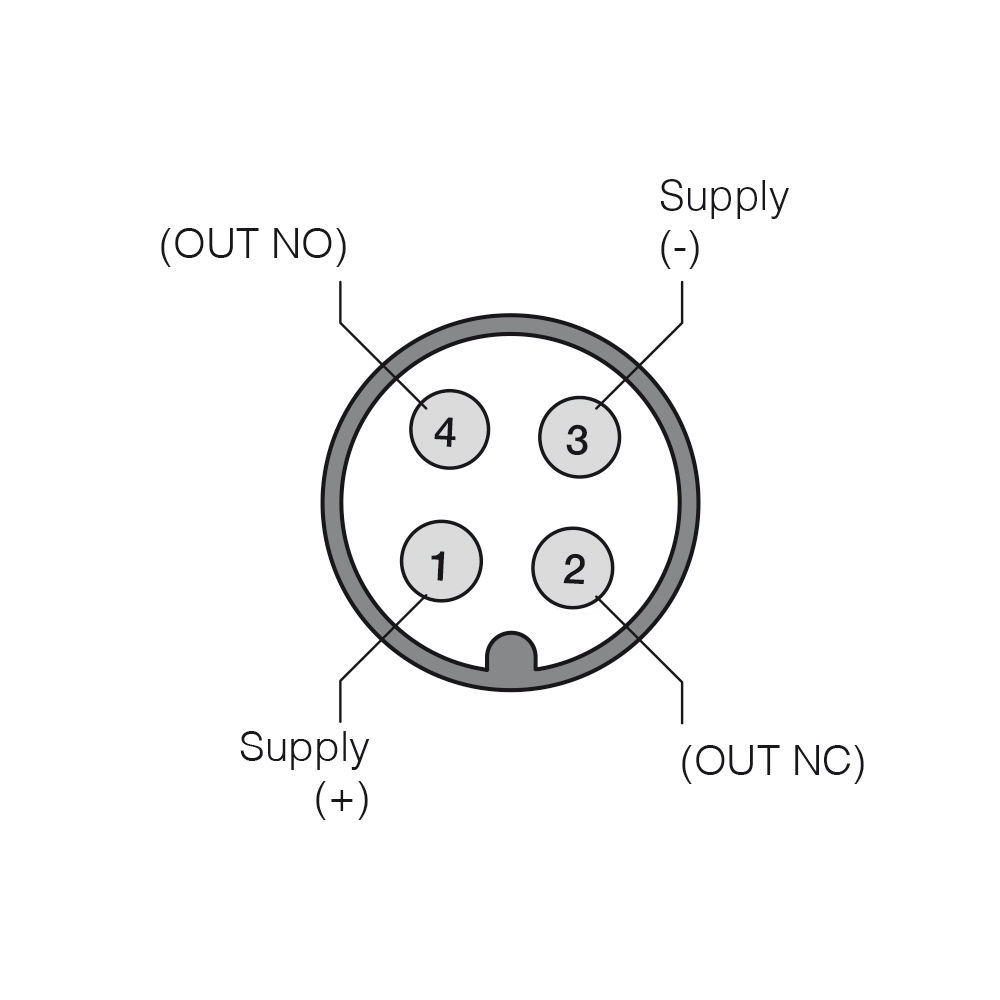

Connection
M12 plug
Active Head Material
Polyester
Tightening Torque
50 Nm
Operating Temperature
-25°C to +80°C (without freeze)
Storage Temperature
-40°C to +85°C

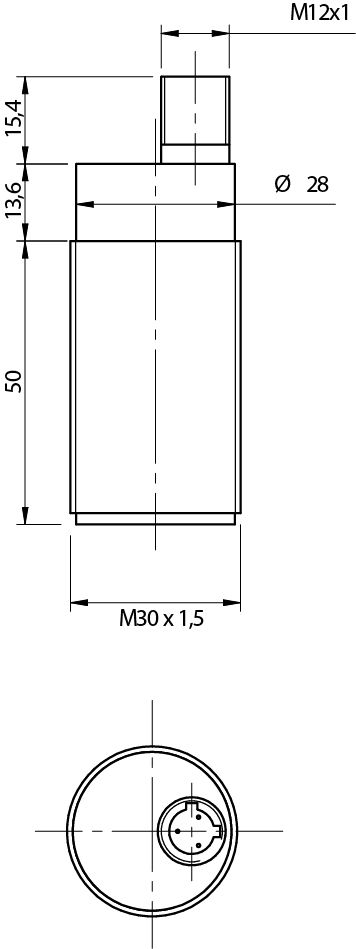

Diameter
M30
Approvals
CE, cULus
EMC Compatibility
IEC 60947-5-2
Shock and Vibration Resistance
Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
IP Rating
IP67
Supplied Accessories
screwdriver, 2 x M30 nuts
