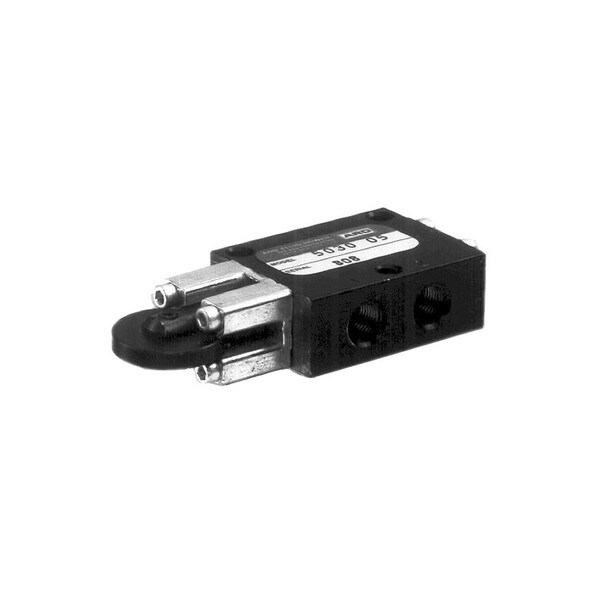

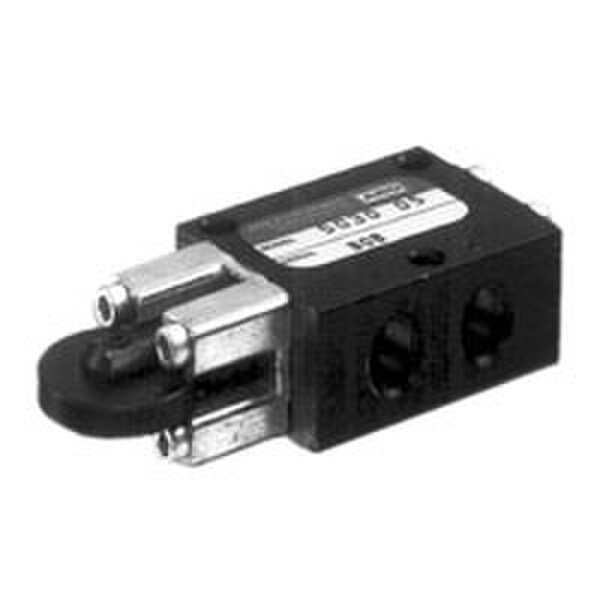

ARO 5030-32 | Air Control Valve, 3-way, 1/8'' side ports, palm, no button/manual

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

ARO 5030-32 | Air Control Valve, 3-way, 1/8'' side ports, palm, no button/manual

$109.27
ARO

Details

ARO 50 Series, 3-Way Valve, 1/8 Side Ports, Palm Without Button/Manual

5030-32

5030-32, 50 Series, 3-Way Valve, 1/8 Side Ports, Palm Without Button/Manual by ARO

Features:
  • Numerous Styles and Options. 3-Way or 4-Way Configurations.

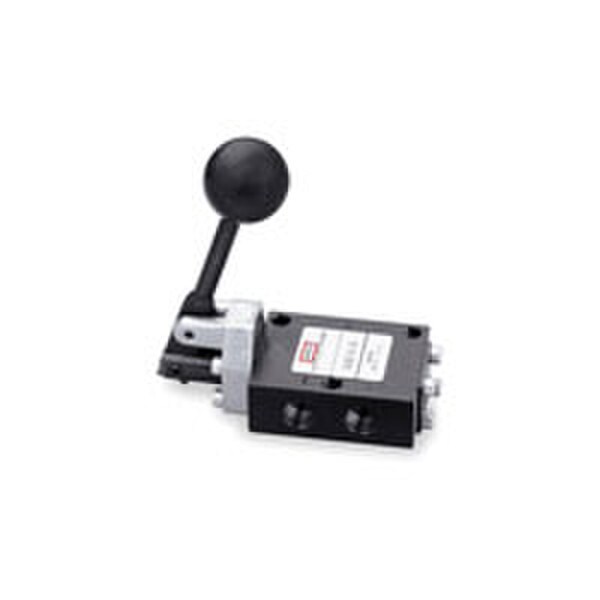

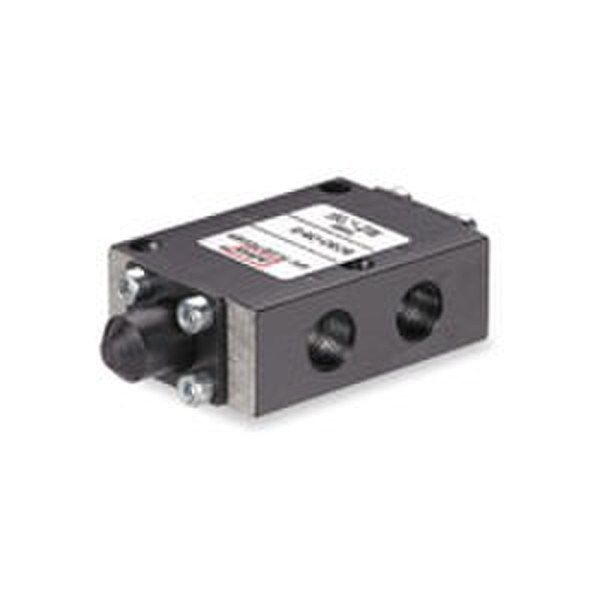

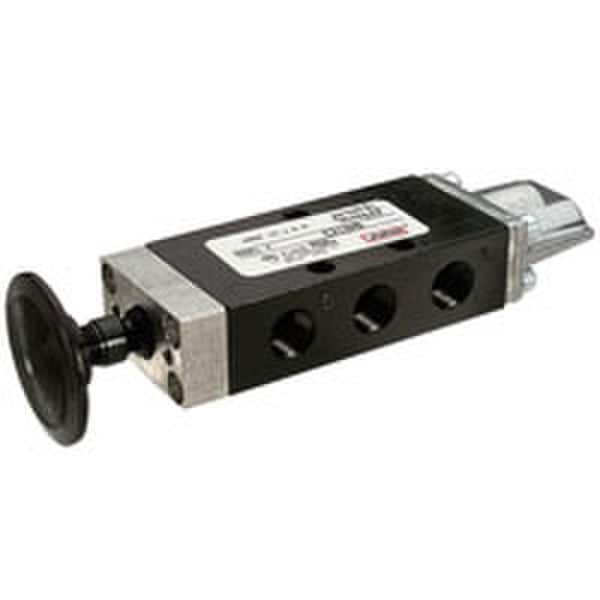

  • Six Actuator Styles: Hand Lever, Palm Button, Roller Cam, Cam Stem, Pilot, Manual Bleed.
  • Compact Size provides greater design flexibility.
  • Perfect for low to moderate flow applications requiring manual or mechanical valve operation.
Valve Design:
    Aluminum Body
  • 50 Series Valves feature an extruded aluminum body for less porosity, greater durability and lighter weight.
  • Body Threaded Ports
  • Port threads are 1/8" NPTF
  • Sturdy Valve Spools
  • Spools are steel on mechanical and manually actuated valves. Pilot and bleed actuator valves feature aluminum spools.
  • Buna N Seals
  • Standard spool seals are Buna N. Viton Seals available. Contact Factory for ordering information.
  • Flow
  • 16 SCFM

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Technical Information

Technical Specifications

Technical Specifications

SKU: 5030-32-IR
Manufacturer ARO
Stock CodeC
Actuation Palm without Button/Manual
Flow (scfm) 16
Max Pressure (psi) 150
Series 50 Series
Type Air Control Valve
Weight2.20 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!
