FA2i-24MK315GP | Infinity Air Winch, 4400 lb capacity, 9139 lb stall pull, 0 - 51 fpm, 1435 ft rope capacity

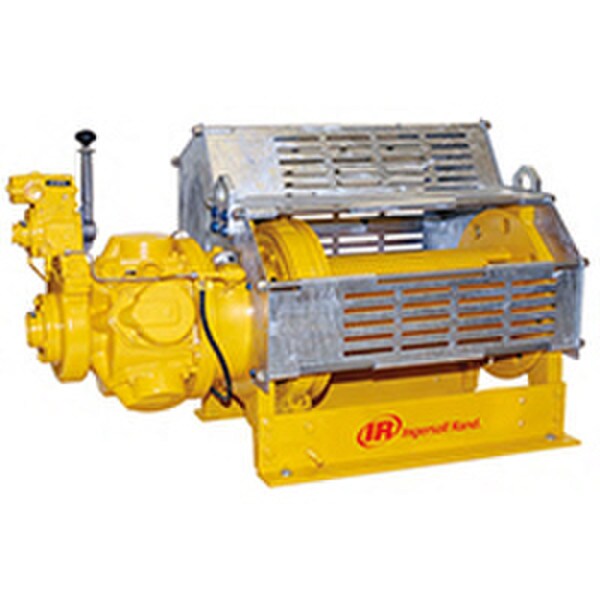

Ingersoll Rand Infinity Air Winch, 4400 lb capacity, 9139 lb stall pull, 0 - 51 fpm, 1435 ft rope capacity

FA2i-24MK315GP

Ingersoll Rand Infinity Winches are the premium air winches of the Ingersoll Rand winch line. They utilize a powerful radial piston air motor that delivers high torque and precise control. Designed with premium features and built using rugged cast iron and steel, Ingersoll Rand doesnÂ’t take shortcuts and never uses inferior components. Infinity winches are available in a wide variety of sizes and configurations. And, with cold weather options and type approvals, these winches are ideal for harsh environment applications.

Durability
• Rugged all steel construction and fabricated steel frames for longer life
• Powerful radial piston air motor provides reliable power and adjustable speed
• Self-cleaning KSC2 control valve improves flow and performance

Safety
• 5:1 design factor for safe working load
• Lift-to-Shift variable speed lever provides precise control and built-in safety
• ATEX Zone 1 and Zone 2 compliance standard

Performance
• Minimum 18:1 drum diameter to wire rope diameter reduces wire rope wear
• Integrated gearbox-in-drum design for use in compact applications
• Built-in lifting lugs designed for lifting the weight of the winch plus wire rope
• Guideline/Podline deep water models are designed for offshore applications
