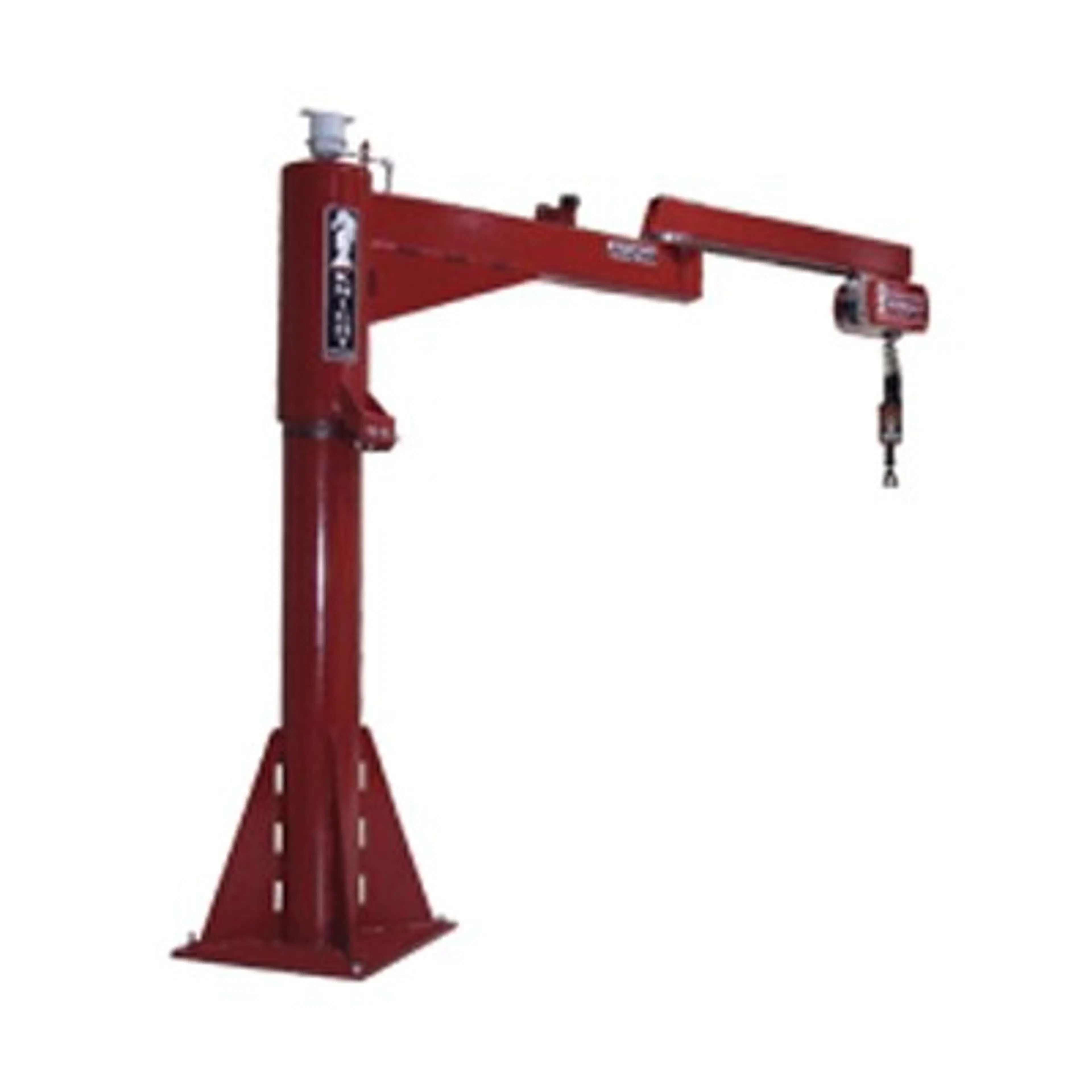

Knight Industries KSHAEA750-2301

Servo Hoist Articulating Extension Arm

Articulating Extension Arm attached to a Servo Hoist. Allows for overhead extended non-linear reach within a work cell.

• For loads up to 1,000 lbs [453.59 kg]
• Variable speed up to 196.85ft. per min. [60mpm] **Dependent upon application
• Extension Arms reach up to 12 ft. [3.7 m]
• Post Heights of 8 ft. [2.4 m], 10 ft. [3.0 m], and 12 ft. [3.7 m]
• Industry standard 24 VDC, 2 AMP power is available for custom tooling such as: clamps, vacuum cups, switches, proximity limits, lights, etc.
• H5 rated (continuous duty cycle)
• 240 VAC, single phase 50/60 Hz.
• Illuminated Run/Stop Button
• Overload Capability
• Fail Safe Brake
• Load Sensing
• Full Lifting Range: Up to 1,000 lbs [453.59 kg]
• Attachment Choices
• Standard Float Mode
• Chain Driven
• Worm Style Gearbox
• Programming and Diagnostic Communication Port
• I/O Capabilities
• Optional Remote Pendant
• LED Status Indicators
• LED Fault Diagnostics
• Virtual Travel Limits
• Speed Reduction Zones
• Various Chain Lengths
