FANUC M-1iA
FANUC
Details

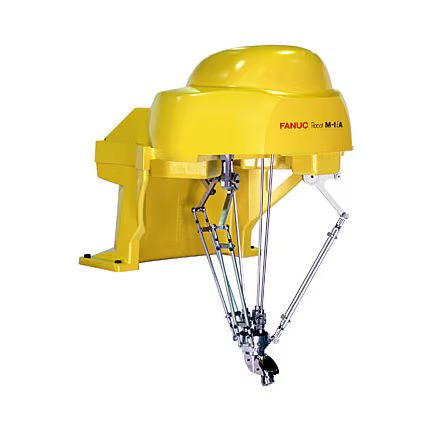

The M-1iA Robot series is ideal for industries producing compact electronic and mechanical devices. For fast and compact production cells. The M-1iA Robot series offers the motion flexibility of a human wrist, fast cycle times, ultra compact arm, precision and more. The fanuc R-30iA Mate and FANUC R-30iA Mate open air controller require minimum space whilst supporting intelligent functions like FANUC iRVision.
NOVEL LIGHTWEIGHT ROBOT FOR ELECTRONICS, MEASURING DEVICE AND OTHER PRECISION INDUSTRIES
- Up to 0.5 kg payload for handling and picking bolts, printed circuit boards etc.
- 280 mm diameter by 100 mm motion range with no dead zones ideal automate tasks, which need the full flexibility of a human hand
- For ultra compact production cells thanks to the compact and lightweight arm of FANUC Robot M-1iA and its compact and powerful FANUC R-30iA Mate Open Air Controller
TOP THROUGHPUT AND NIMBLE 6-AXES MOTION
- Highest productivity for assembly and picking applications
- Lightweight mechanism with best cycle times
- Unique 6-axes parallel link arm mechanism allows to automate difficult tasks such as complex insertion, gluing, soldering and more
FLEXIBLE MOUNTING SAVES PRECIOUS SPACE
- Low mass arm <=23 kg (6-axes version with integrated stand) for compact and lightweight robot cell
- Top access to the work piece and integrated stand allows for plug and play installation
- Robot arm can be floor, ceiling and angle mounted to save space and optimize access to work piece and cycle times
COMPACT AND INTELLIGENT CONTROLLER
- FANUC R-30iA Mate Open Air Controller is ultra compact and can be mounted inside standard control cabinets.
- FANUC integrated iRVision can locate and check work pieces for flexible parts feeding applications and other intelligent tasks (Camera must be mounted remotely from robot)
- FANUC integrated Force Sensor can control force guided assembly and other intelligent applications (Force Sensor must be mounted remotely from robot)
Warning: California Proposition 65Get your tool under our Flex Warranty!
We will fix it or replace it.
FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.
*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.
Features & Benefits
- Maximum Reach: 100 mm
- Maximum Payload: .5 Kg
- Call Or Email Us For A Quote
- Repeatability: ± 0.02 mm
Technical Information
Technical Specifications
Technical Specifications
Technical Documents Technical Specifications
SKU: M-1iA Robot Series
Manufacturer FANUC
Series M-1iA
