AIMCO UX-T1620 | 87.0 - 150.0 Ft Lb Auto Shut Off Pulse Tool
AIMCO
Details

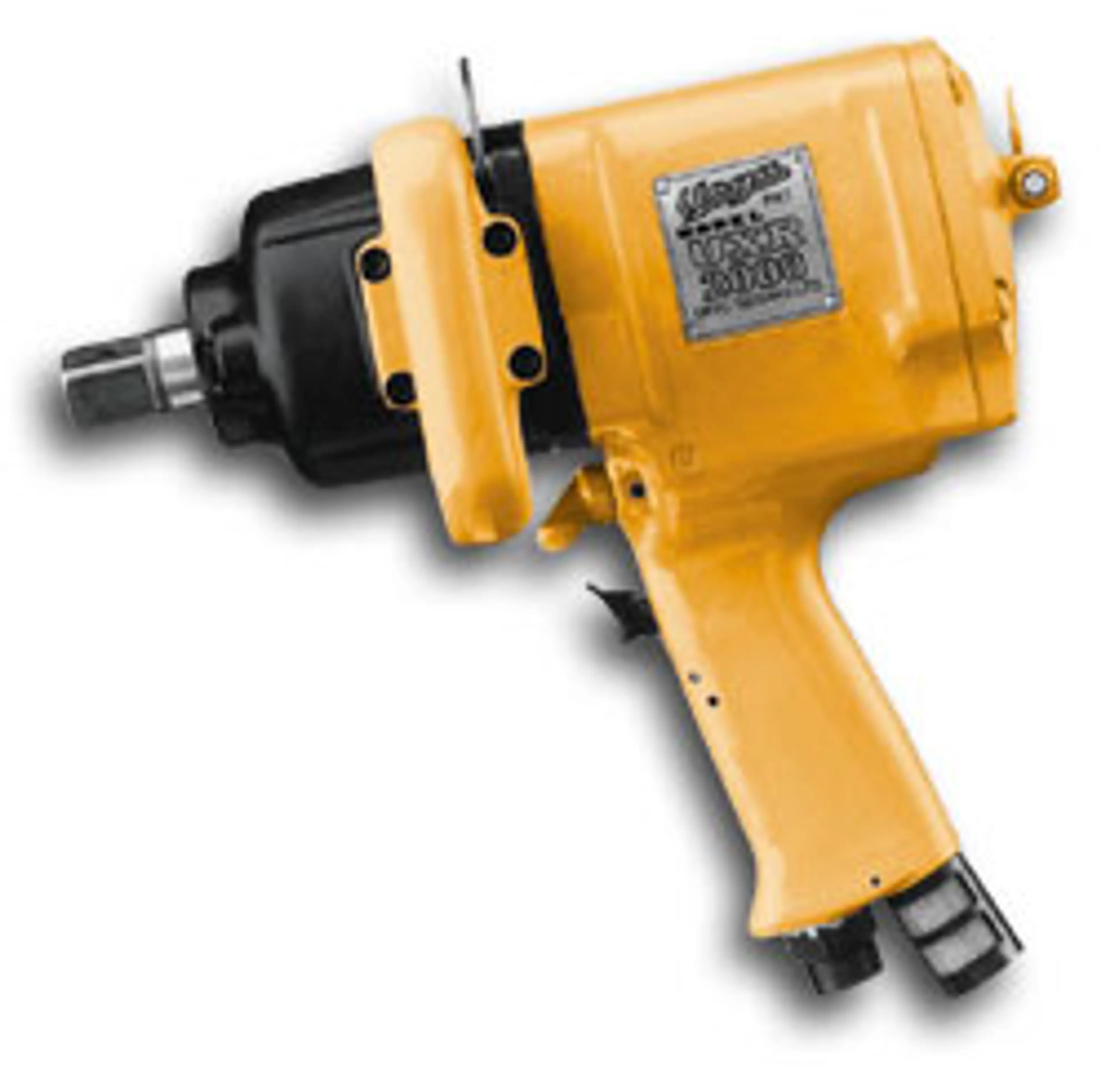

AIMCO URYU UX-T1620
87.0 - 150.0 Ft Lb Auto Shut Off Pulse Tool
Manufacturer: URYU
Air Consumption- ft3/min:Â Â 22.9Free Speed - rpm:Â Â 5,000
Noise Level - dB(A):Â Â 80
Overall Length (approx) - in:Â Â 10.2
Overall Length (approx) - mm:Â Â 260
Piston Stroke - in:Â Â 1.6
Piston Stroke - mm:Â Â 40
Square Drive - in:Â Â 3/4
Torque Range - ft lbs:Â Â 87 ~ 150
Torque Range - Nm:Â Â 120 ~ 210
Weight less Socket - kg:Â Â 3.7
Weight less Socket - lb:Â Â 8.1
Features
- Ideal for applications requiring no operator influence in the final fastening rundown for precise torque repeatability
- When preset torque is achieved, the hydraulic pressure is sufficient enough to bypass a spring-loaded piston and move the shutoff rod to rear, quickly opening the pilot valve and shutting off the tool
- No air timer involved with shutoff mechanism
Productivity
- High speed rundown reduces fastening time
- Shutoff mechanism instantly signals cycle completion to operator
- One hand operation frees the other for productive use
- Ergonomic benefits for less fatigue and increased productivity
- Quick and easy forward and reverse operation with single-hand reverse lever
Ergonomics
- Virtually no reaction impulse during and after fastener rundown
- Fast rundown reduces operator exposure
- Low vibration and sound levels due to absence of metal-to-metal contact
- High power to weight ratio
- Anti-vibration jacket handle provides comfortable operator handling
- Exhaust silencer with combined one-piece air inlet bushing
- Quick and easy forward and reverse operation with single-hand reverse lever
Reliability
- No mechanical clutch or hard part engagement for low maintenance and longer life
- Extended socket and extension life
- Automatic shutoff series is self-diagnostic
- No air line lubrication with oil-free rotor blades
Quality
- Built-in torque adjuster and shutoff mechanism matches each application for required torque and fastening time
- Extremely accurate on properly designed joints
- Excellent clamp force repeatability
- Torque adjustment on outside of tool
- Monitoring available for process verification
- No oil film on finished work piece with oil-free rotor blades
Warning: California Proposition 65
Get your tool under our Flex Warranty!
We will fix it or replace it.
FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.
*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.
Models Available
Technical Information
Technical Specifications
Technical Specifications
SKU: UX-T1620-aimco
Manufacturer AIMCO
Stock CodeC
Torque Range (Ft Lbs) 87 - 145
Torque Range (In Lbs) - 1858.7
Torque Range (Nm) 120 - 210
We strive to provide as much technical information as possible. If you need more tech data, let us know!
