Ventboss S312 | FloorMount Unit with one 8 in. x 14 ft. Fumearm

$9,794.19
Ventboss

Details

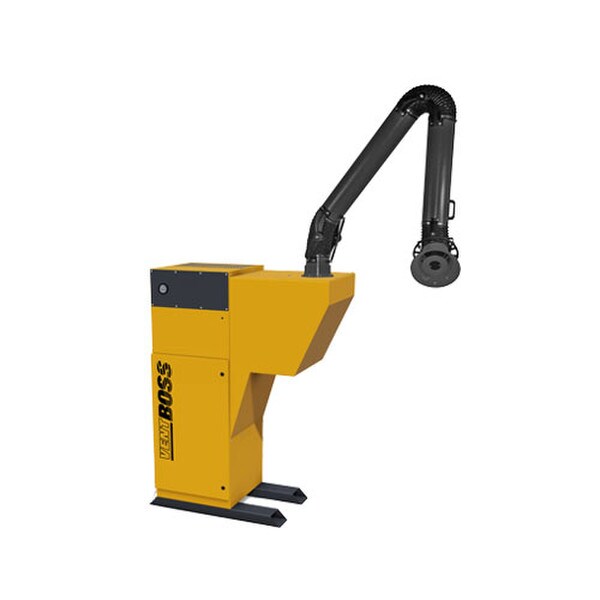

Ventboss S312

FloorMount Unit with one 8"14' Fumearm

With 1500 CFM of smoke capturing power, this single or double fume arm unit is a heavy hitter, easily handling your tough manual welding situations.

Features:
  • Built-In 3 Layer Spark Arrestance
  • Intake Boot
  • Compressed air Pulse Cleaning System with on board tank
  • High Performance Blower
  • Acoustic Silencing
  • Heavy Duty – All Steel Construction
  • Fork Pocket Base
  • Suitable for Welding Stainless Steel.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Technical Information

Technical Specifications

Technical Specifications

SKU: S312-ventboss
Manufacturer Ventboss
Model S312
Application Manual Welding, Grinding
Dimensions 70 x 24 x 25 in.
Filter Media Nanofiber Merv 13
Input Power 480V, 3 Phase, 3.4 Amps
Max Air Consumption (cfm) 1500
Rated Power (hp) 2
Type Fume Extractor

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!
