SSI-12R10 | 1mm x 16mm Robotic Screw Feeder, 40cc
Overview

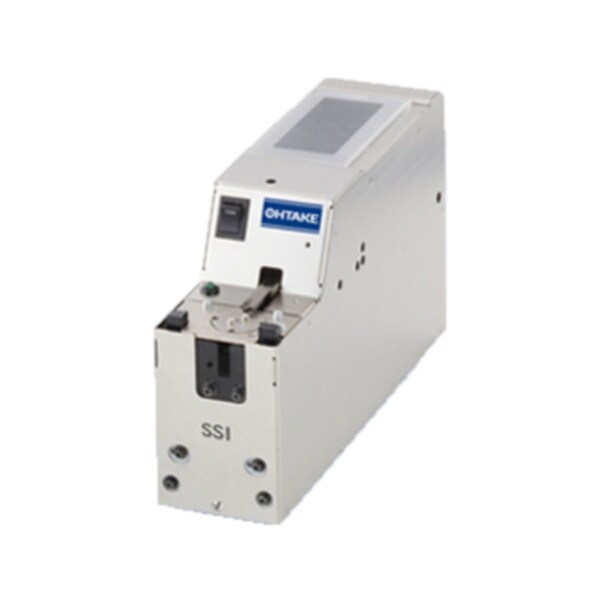

Introducing the Ohtake SSI-12R10 Compact Robotic Screw Presenter, a revolutionary solution for your screw feeding needs. This advanced screw feeder is meticulously designed to enhance efficiency and precision in your assembly processes.
- Screw Size: 1mm x 16mm
- Capacity: 40cc
- Width: 65mm
- Manufacturer: Ohtake
Features & Benefits
- Compact Design: With a slim width of 65mm, the SSI-12R10 seamlessly integrates into tight assembly spaces, optimizing your workspace and maximizing productivity.
- High Efficiency: Equipped with a rotary disc escaper, this screw feeder ensures a continuous and reliable supply of screws, minimizing downtime and maximizing production efficiency.
- Screw Compatibility: The SSI-12R10 is specifically engineered to present 1mm x 16mm screws, catering to a wide range of assembly applications.
- Horizontal Rail: The innovative horizontal rail design effectively prevents jamming of screws, ensuring smooth and uninterrupted operation throughout your assembly tasks.
- Capacity: With a generous capacity of 40cc, this screw feeder reduces the frequency of refills, allowing for extended periods of uninterrupted operation.
Technical Specifications
Type
Robotic Screw Presenter
Screw Diameter - mm
1
Max Screw Length - mm
16
Capacity - cc
40
Dimensions - mm
65 x 242 x 146
Power Supply
AC100 - 240V DC15V
Weight - kg
3.2
Technical Documents
Ohtake Screw Presenters Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
