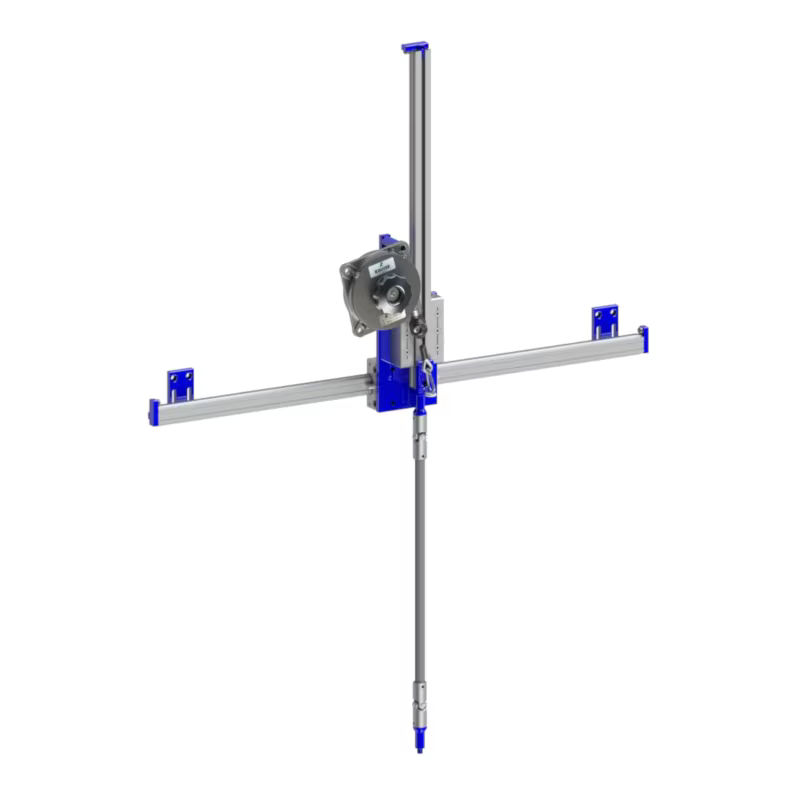

SAR15 XZ 85 | Suspended Torque Reaction Arm, 133 in lbs, 19.5 in. Z stroke, 31.5 in. X axis travel
The suspended arm is ideal for assembly where space is a premium and operator safety is mandatory.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Kolver Suspended Torque Reaction Arm, 133 in lbs, 19.5 in. Z stroke, 31.5 in. X axis travel
Suspended Torque Reaction Arm, 133 in lbs, 19.5 in. Z stroke, 31.5 in. X axis travel, model# 010690/XZ/85, available to order online from Flexible Assembly Systems. Do you see this Kolver Torque Reaction Arm available elsewhere for a lower price? Contact Customer Service to price match!
010690/XZ/85 by Kolver
Torque reaction arms have been designed to eliminate the reaction that screwdrivers generate when they stop at the pre-set torque (Up to 442 in/lbs). Carbon (CAR) arms are lighter and more resistant thanks to their carbon structure. CAR, LINAR and SAR XYZ arms are also available with TLS1 positioning system, which allows to operate only when the screwdriver is positioned on the correct screw. The system consists of a torque reaction arm with encoder and linear metering sensor + TLS1 Keypad for easy programming and monitoring + cable to be selected between code 260004 (for EDU2AE models and EDU1BL/SG) and code 260003 (for EDU1FR/SG).
| Technical Specifications | |
|---|---|
| Model | SAR15 XZ 85 |
| Maximum Tool Weight (lbs) | 3.4 |
| Type | Articulated Reaction Arm |
| Manufacturer | Kolver |
| SKU | 010690/XZ/85 |
| Max Torque (In Lb) | 133 |
| Weight (lbs) | 10.2 |
| Stroke Length (in) | 27.2 |
| Series | SAR |
| Capacity (lbs) | 3.4 |
| MPN | SAR15 XZ 85 |
