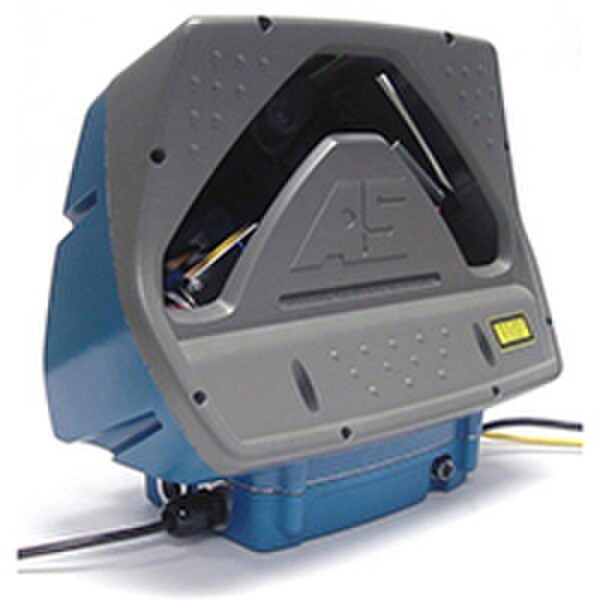

Datalogic 1000063503

Axiom-X Scanner, 4-Laser, Medium Density

The AXIOM-X omni-directional laser barcode reader is designed with industrial and manufacturing applications in mind. The AXIOM-X scanners offer high-speed scanning and high reliability in a rugged industrial enclosure with a large depth of field that provides accurate barcode reading at distances greater than 60 inches.

Features:
  • Continuous scanning over 2 read zones
  • No focusing required, no dead zones
  • Up to 1120 scans per second
  • Modular scan head and wiring base
  • Parameter storage modules store the configuration in scan head and wiring base
  • EtherNet/IP, Ethernet TCP/IP standard
  • Axcess software with powerful and intuitive interface
Applications:
  • Postal/Parcel sorting and tracking
  • Automated warehousing identification systems
  • Airport baggage sorting systems
  • Cargo applications
  • Receiving / shipping systems

The AXIOM-X omni-directional laser barcode reader is designed with industrial and manufacturing applications in mind. The AXIOM-X scanners offer high-speed scanning and high reliability in a rugged industrial enclosure with a large depth of field that provides accurate barcode reading at distances greater than 60 inches.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Continuous scanning over 2 read zones

Technical Information

Technical Specifications

Technical Specifications

SKU: 1000063503-datalogic
Manufacturer Datalogic
Model 1000063503
Communication On-board EtherNet IP, Ethernet TCP IP, Serial RS232, RS422, and 4 programmable IO relays
Dimensions 316 x 354 x 176 mm
Laser Type Visible laser diode 650 nM (standard)
Series AXIOUM-X
Type Laser Bar Code Scanner

We strive to provide as much technical information as possible. If you need more tech data, let us know!
