Features & Benefits
- Versatile Torque Range: With a torque range of 10-100 in oz, this digital torque tester caters to a wide array of applications, ensuring accurate and reliable measurements for both low and high-torque requirements.
- Multiple Units of Torque: The CDI 1001-O-DTT-CDI provides multiple units of torque, including Nm, kgcm, ft.lb., in.lb., and kgm, allowing users to select the most suitable unit for their specific needs.

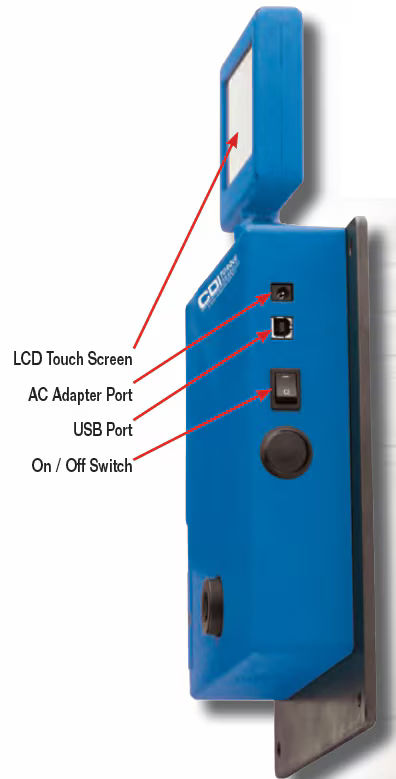

- Easy-to-Use Touch Screen: Equipped with a 4.7-inch color graphics LCD touch screen, the CDI 1001-O-DTT-CDI offers intuitive operation and clear visibility of test results.
- High Accuracy: Featuring a torque accuracy of +/-0.5% CW and CCW from 5.6 to 100% of full scale at 25 C, this digital torque tester delivers precise and consistent measurements you can trust.
- Multiple Modes of Operation: The tester provides three modes of operation: Track, Peak, and First Peak, enabling users to capture and analyze torque data according to their specific testing requirements.
Technical Information
Technical Specifications
Technical Specifications
SKU: 1001-O-DTT
Manufacturer CDI
Model 1001-O-DTT
Dimensions 10 x 16 x 2.5 in
Drive size 1/4'' square
Series DTT
Torque Range (Ft Lbs) - 0.04
Torque Range (In Lbs) - 6.25
Torque Range (Nm) - 0.7
Type Digital Torque Tester
Wrench Type Dial Torque Wrench
Weight18.42 lbs
We strive to provide as much technical information as possible. If you need more tech data, let us know!
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Videos & Media
Frequently Asked Questions
Learn more about our products
01What is the 1001-O-DTT's torque range?
The 1001-O-DTT has a torque range of up to 6.25 in lbs.
