1/4'' Hex 8 ft lb Non Shut Off Pulse Tool
Non-shut off Pulse Tools are recommended for jobs where speed and ergonomics are important. These tools offer a lube-free, dual chamber air motor along with self-lubricaring blades.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Details
Product information
Overview

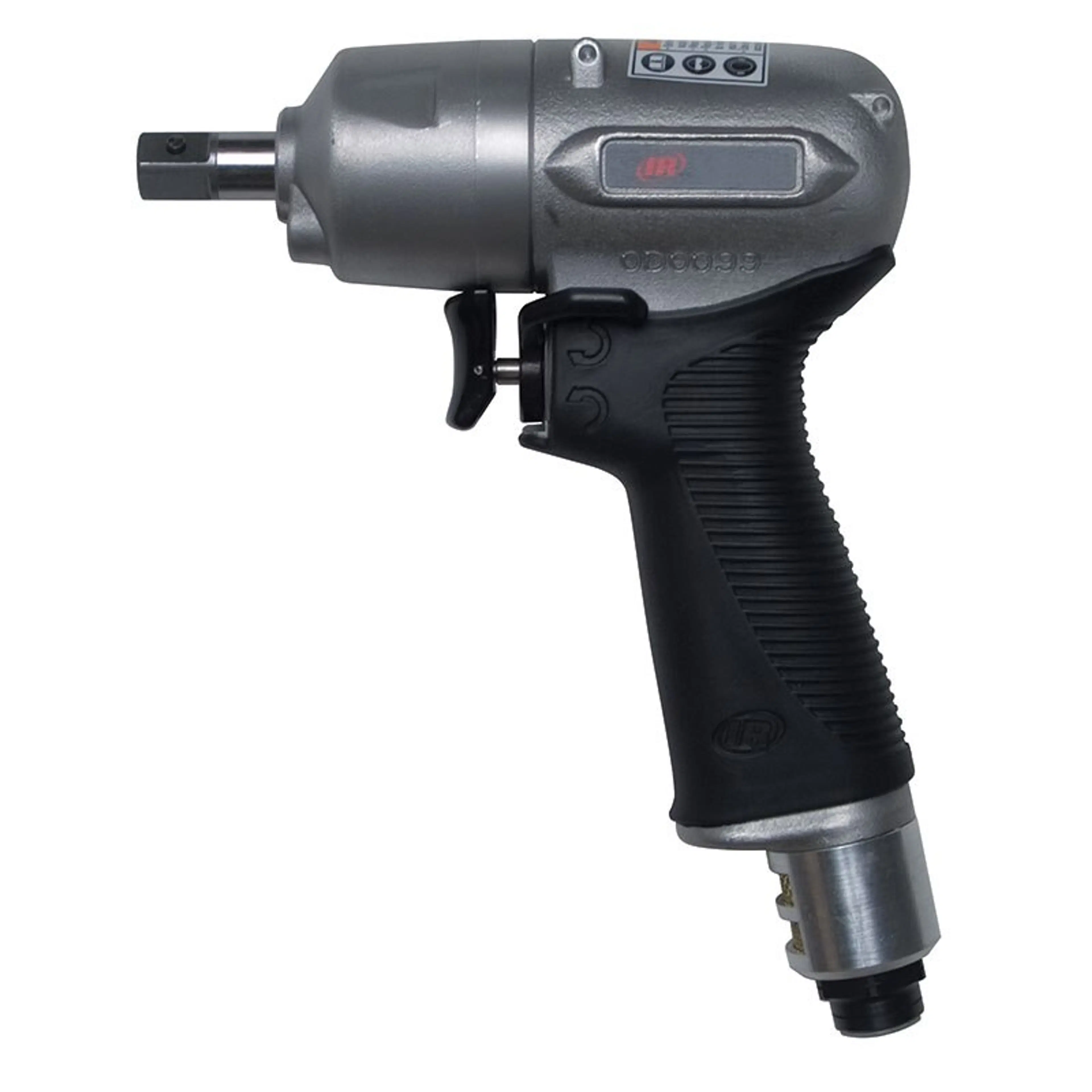

Ingersoll Rand 1/4" Hex 8 ft lb Non Shut Off Pulse Tool
100PQ1
100PQ1 by Ingersoll Rand offers a full line of standard shutoff and non-shutoff pulse tools in pistol, angle, and in-line configurations to meet your needs. These extremely lightweight tools offer excellent power, speed, accuracy, and ergonomics.
The Q-Series is the latest generation of pulse tools engineered with the end-user in mind making them the tools of choice for operators looking for the best combination of speed, ergonomics, and accuracy.
Features:Improved life-cycle costs : Patented cooling system, improved sealing, and dual bearing support mechanism
Environmentally enhanced : Lube-free, dual chamber air motor, and self-lubricating blades and cylinder reduce oil mist in the environment and provide extended durability
Quick and easy torque adjustment : One screw on both shutoff and non-shutoff models speeds the setup process while still providing good repeatability
Rapid reset mechanism : Responds quickly to speed up cycle times on shut-off models
Reactionless one-handed operation : Low-force trigger and easily accessible reverse lever lets operators concentrate on their task
Comfortable soft-touch grip : Ergonomically contoured to reduce operator fatigue
Directional air exhaust : Silencer projects noise and exhaust away from the user and the workpiece
Ergonomic improvements : Provide greater useability with lighter, smaller, quieter, and lower vibration designs
| Technical Specifications | |
|---|---|
| Model | 100PQ1 |
| Stat 1 | 9,300 rpm |
| Stat 2 | 3.0 - 8.0 Ft Lb |
| Drive size | 1/4'' hex |
| Manufacturer | Ingersoll Rand |
| Length (In) | 5.6 |
| Min Torque (Ft Lb) | 5.5 |
| Max Air Consumption (cfm) | 12 |
| Free Speed (RPM) | 9300 |
| SKU | 100PQ1 |
| Stock Code | 3 |
| Air Inlet | 1/4 in. |
| Fastener Size | M4 - M5 |
| Style | Pistol Grip |
| Clutch Type | Non Shut Off |
| Sound Level (dBA) | 76 - 83 |
| Max Torque (In Lb) | 97.4 |
| Max Torque (Ft Lb) | 8 |
| Min Torque (Nm) | 7.5 |
| Max Torque (Nm) | 11 |
| Max Free Speed (rpm) | 9300 |
| Weight (lbs) | 1.6 |
| Drive Type | 1/4 in. hex |
| MPN | 100PQ1 |
| Features & Benefits | |
| High-Speed, reactionless fastening | |
| Consistent torque with fully customizeable operator feedback | |
| Low vibration and noise and reactionless one handed operation | |
| High-Speed | |
| reactionless fastening | |
