1600-MT-Series
Portable electronic torque tester displays torque readings from sensors that attach between sockets and driver
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Drive Size | Price | Qty | |
|---|---|---|---|---|
 15005-F-MT15005-F-MT | 1 DR SENSOR 150-1500 FT LBS$1,172.15 | 1'' square | $1,172.15 | 1 | View details |
| 201-0-MT201-0-MT | Multitorq Sensor$515.27 | 1/4'' square | $515.27 | 1 | View details |
| 501-I-MT2501-I-MT2 | 1/4 DR SENSOR 5 - 50 IN LBS$1,169.00 | — | $1,169.00 | 1 | View details |
 6004-F-MT6004-F-MT | 3/4 DR SENSOR 60 - 600 FT LBS$876.95 | 3/4'' square | $876.95 | 1 | View details |
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 1600-101600-10 | MULTITOR INTER CABLE SER PRINT$80.87 | $80.87 | 1 | View details |
| 1600-201600-20 | MULTITO INTER CAB RS-232 TO PC$86.99 | $86.99 | 1 | View details |
Details
Product information
Overview

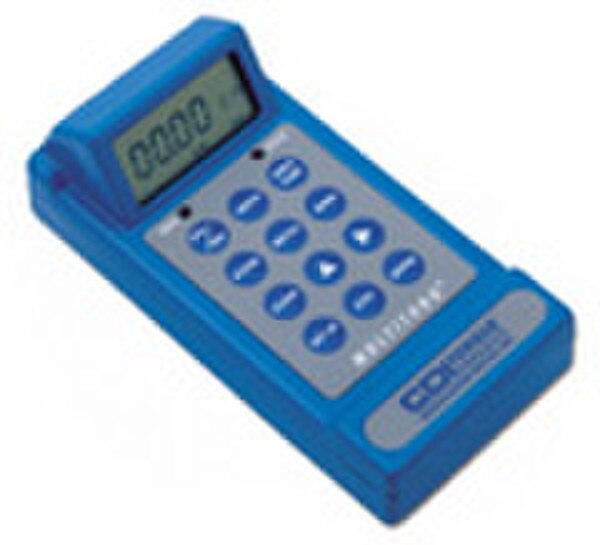

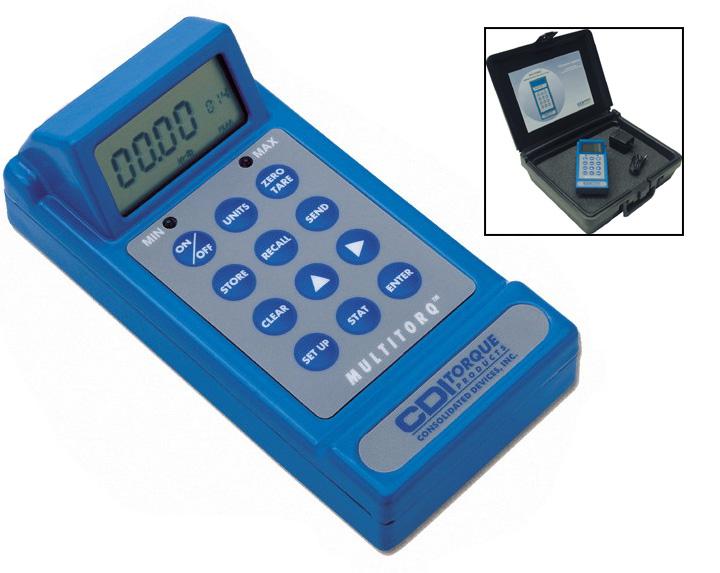

The MULTITORQ portable electronic torque meter displays torque readings from sensors that attach between sockets and driver. MULTITORQ is a highly versatile torque analyzer/data acquisition system that can be used with sockets, extensions, universal joints, ratcheting drivers or any combination of these. Sensors are sold separately, available in 8 ranges from 2-20 in. ozs. to 150-1500 ft. lb. Accuracy ± 1% of reading (± 2% reading for 20 in. oz., and 10 in. lb.) 10-100% of sensor range.
The torque analyzer features a wide angle viewing LCD display with selectable readouts; ft. lb., in. lb., in. oz., Nm, dNm, mkg, and cmkg units. Torque target settings are entered via a push button membrane keyboard. High and low torque limits are adjustable to give an audible and visual alarm. The user selects Track mode to display torque values as they are applied, or Peak mode to display the highest torque value applied.
• 4 digit w/ alpha & numerical function flags
• 4 digit, 8000 counts display capacity
• Accuracy: ± 1% of indicated value, cw & ccw, from 10% to
100% of full scale, 201-O-MT and 101-I-MT are ± 2%
• Soft touch keys: hi/lo alarm, zero tare, set-up, units,
store/recall/clear, send, statistics, enter
• Units of measurement: ft. lb., in. lb., in. oz., Nm, dNm,
mkg and cmkg
• Storage: -20 to 50 degrees C (-2 to 122 degrees F)
• Humidity: up to 90%, non-condensing
• Dimensions: 3" wide, 2.5" high (3" with belt clip), 6" deep
• Weight: 1 pound
• Charge life (full charge to shutoff): 20 hours continuous
• Battery chargers: 120 VAC or 220 VAC (50-60Hz)
• Output: 9VDC, 200mA
• Data storage/recall: 3500 measurements
• Serial output port: RS-232 (true), 300-19.2k baud, and
mitutoyo (statistical protocol)
• Rechargeable Ni-Cad batteries
• Reads bi-directionally (cw and ccw)
The torque analyzer features a wide angle viewing LCD display with selectable readouts; ft. lb., in. lb., in. oz., Nm, dNm, mkg, and cmkg units. Torque target settings are entered via a push button membrane keyboard. High and low torque limits are adjustable to give an audible and visual alarm. The user selects Track mode to display torque values as they are applied, or Peak mode to display the highest torque value applied.
• 4 digit w/ alpha & numerical function flags
• 4 digit, 8000 counts display capacity
• Accuracy: ± 1% of indicated value, cw & ccw, from 10% to
100% of full scale, 201-O-MT and 101-I-MT are ± 2%
• Soft touch keys: hi/lo alarm, zero tare, set-up, units,
store/recall/clear, send, statistics, enter
• Units of measurement: ft. lb., in. lb., in. oz., Nm, dNm,
mkg and cmkg
• Storage: -20 to 50 degrees C (-2 to 122 degrees F)
• Humidity: up to 90%, non-condensing
• Dimensions: 3" wide, 2.5" high (3" with belt clip), 6" deep
• Weight: 1 pound
• Charge life (full charge to shutoff): 20 hours continuous
• Battery chargers: 120 VAC or 220 VAC (50-60Hz)
• Output: 9VDC, 200mA
• Data storage/recall: 3500 measurements
• Serial output port: RS-232 (true), 300-19.2k baud, and
mitutoyo (statistical protocol)
• Rechargeable Ni-Cad batteries
• Reads bi-directionally (cw and ccw)
| Features & Benefits | |
|---|---|
| Torque Range: 2.0 In Oz to 1500 Ft Lb | |
| Accuracy: +/- 1.0% | |
| From $600 up to $2,506 |
