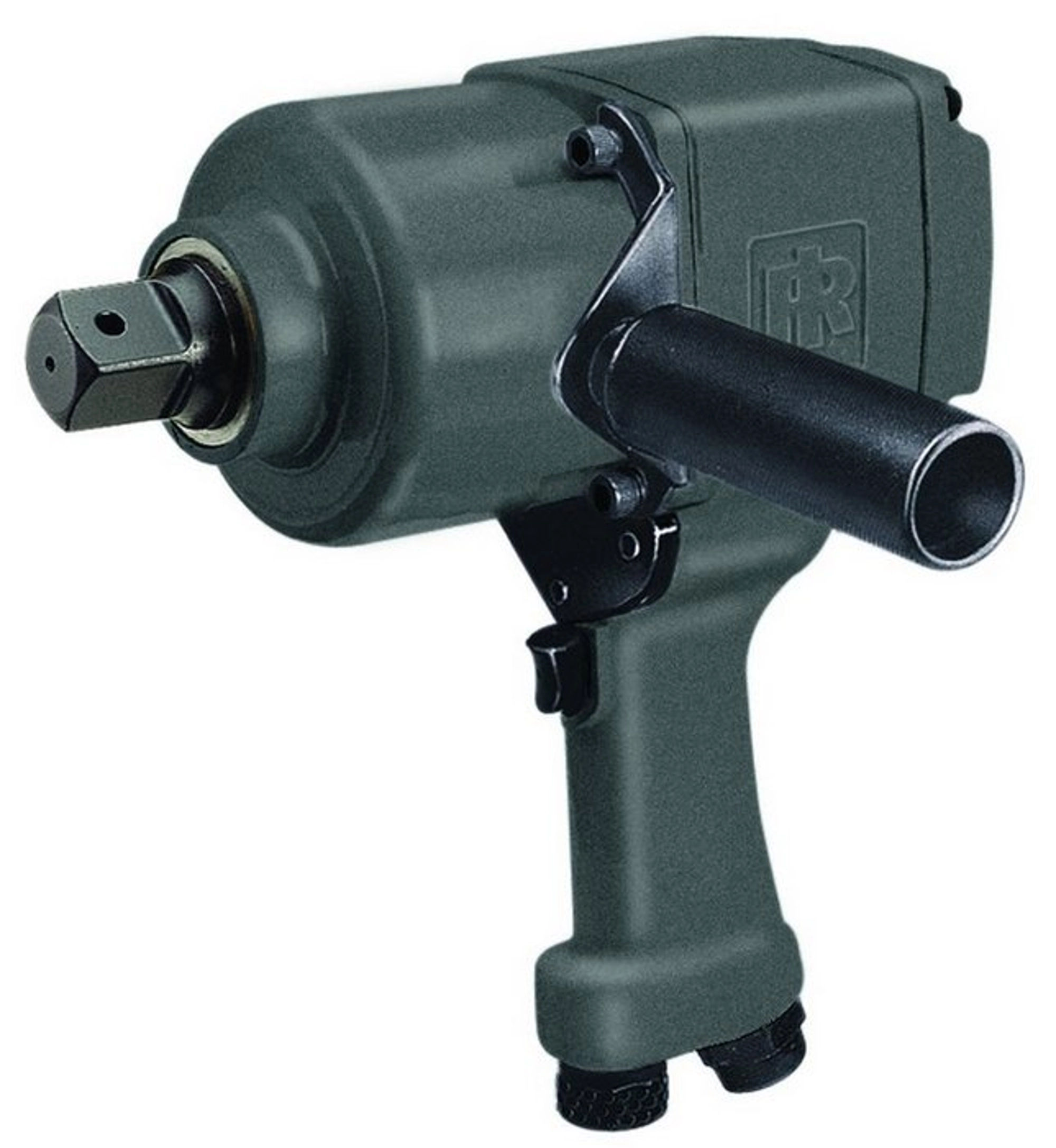

1000 - 2000 ft lb, Air Impact Wrench, Spline 1 in Drive

$4,317.55List $7,750.00

Save $3,432.45

Total$4,317.55Taxes & shipping at checkout

Quantity

Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

Documents3 files

293S | 1000 - 2000 ft lb, Air Impact Wrench, Spline 1 in Drive293S

Total$4,317.55

6 items

Add-on accessories that can be purchased alongside this product.

Product	Manufacturer	Weight (lbs)	Price	Qty
10G10G \| Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76	Ingersoll Rand	7.30	$76.76	1	View details
10GW10GW \| Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75	Ingersoll Rand	9.20	$109.75	1	View details
10P10P \| Air Tool Lubricant, Class 1 #10, 1 Pint$15.48	Ingersoll Rand	0.90	$15.48	1	View details
10Z410Z4 \| Air Tool Oil, 4oz.$9.43	Ingersoll Rand	0.27	$9.43	1	View details
C38341-810C38341-810 \| 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70	ARO	—	$362.70	1	View details
C383D1-810C383D1-810 \| 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80	ARO	4.54	$424.80	1	View details

Technical Specifications
Power Source	Air Powered
Sound Pressure	87.3 / 98.3
Vibration Level	18.1
Duty Rating	Super Duty
Air Inlet Size	1/2" NPT
Min Hose Size	3/4"
Air Pressure (PSI)	90
Air Consumption @ Load	64
Avg Air Consumption	12
Retainer	Ball
Drive Size	No. 5
Max Torque (ft-lb)	2000
Max Torque (in-lb)	24003
Max Torque (Nm)	2712
Free Speed (RPM)	3500
Drive Type	Spline
Mechanism	Twin Hammer
Exhaust Direction	Bottom
Motor Type	Non-Biased
Vibration Uncertainty	5.6
Weight (lbs)	22.8
Weight (kg)	10.34
Length (in)	11.3
Length (mm)	287
Width (in)	4
Width (mm)	102
Height (in)	6
Height (mm)	152
Housing Material	Aluminum core with composite sleeve
Color	Grey
Handle Material	Composite
Configuration	Pistol Grip
MPN	293S
