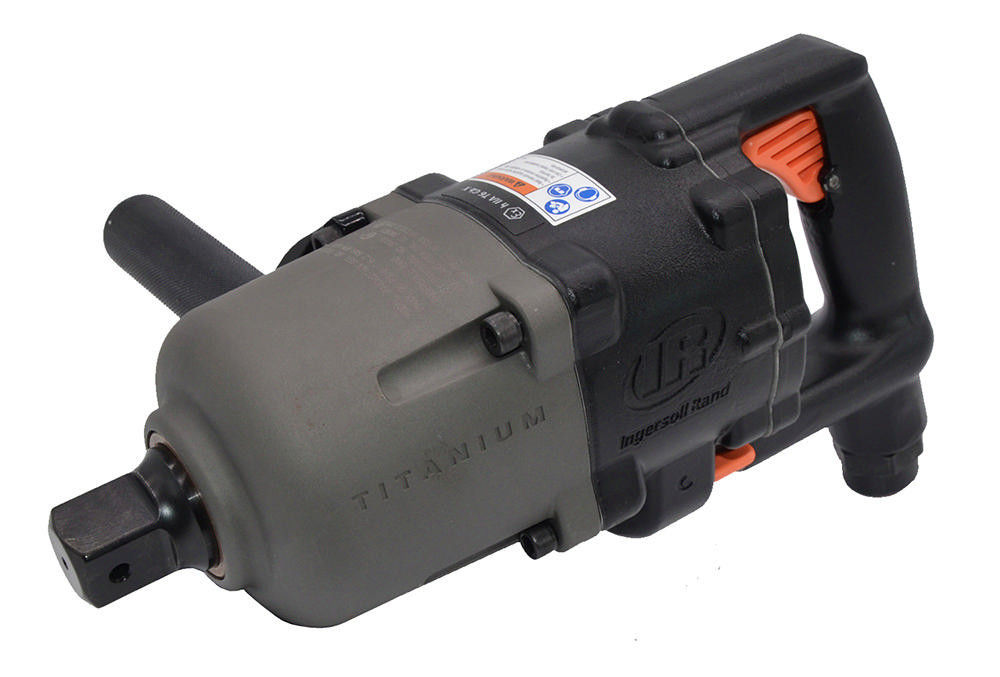

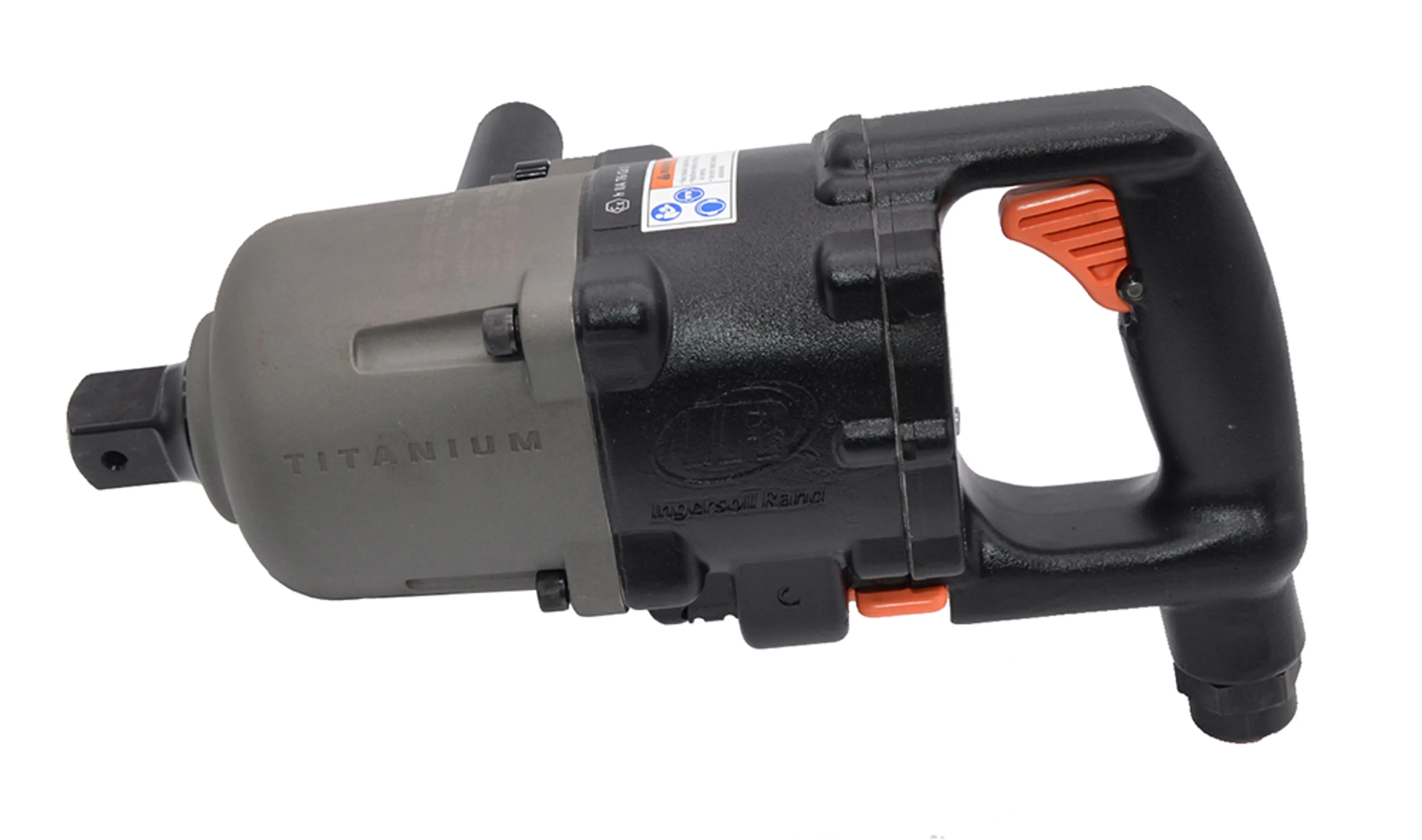

Ingersoll Rand3940B2TiEX
1'' IMPACTOOL, ATEX
Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with titanium hammercase, bronze end plates, and a corrosion preventative treatment up to 5000 ft-lbs
$6,276.56List $9,750.00
Save $3,473.44Total$6,276.56Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
3940B2TiEX | 1'' IMPACTOOL, ATEX3940B2TiEX
Total$6,276.56
1
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Price | Qty | |
|---|---|---|---|---|
 C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | C38341-810 | $362.70 | 1 | View details |
| C383D1-810C383D1-810 | 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80 | C383D1-810 | $424.80 | 1 | View details |
Details
Product information
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 13.1 |
| Duty Rating | Atex/Hazardous Duty |
| Air Inlet Size | 1/2" NPT |
| Min Hose Size | 3/4" |
| Air Pressure (PSI) | 90 |
| Avg Air Consumption | 64 |
| Retainer | Thru-hole |
| Drive Size | 1 |
| Max Torque (ft-lb) | 2750 |
| Max Torque (in-lb) | 33004 |
| Max Torque (Nm) | 3729 |
| Free Speed (RPM) | 6000 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Reverse Bias |
| Vibration Uncertainty | 1.6 |
| Weight (lbs) | 21.2 |
| Weight (kg) | 9.62 |
| Length (in) | 13.5 |
| Length (mm) | 343 |
| Housing Material | Aluminum |
| Color | Grey |
| Configuration | D-Handle |
| MPN | 3940B2TiEX |
| Features & Benefits | |
| Corrosion and wear resistant | |
| Can withstand the harshest conditions | |
| Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding | |
| Optimized for general industrial use | |
| MRO | |
| rail | |
| heavy machinery | |
| and shipbuilding | |
