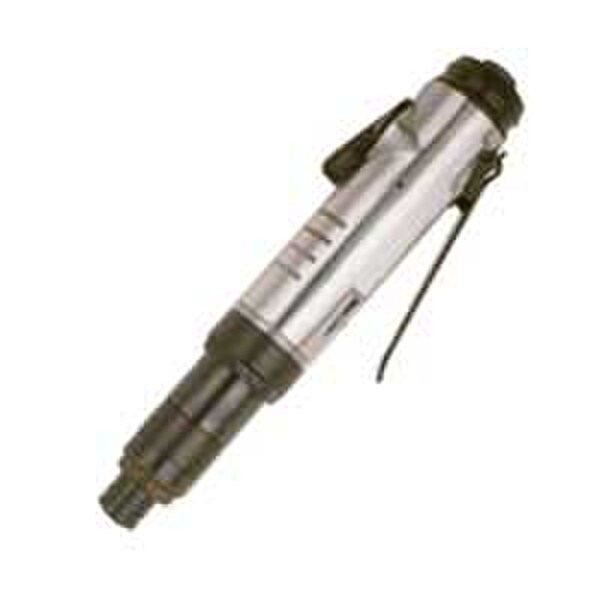

SKU: 5RLNC1-IR
Manufacturer Ingersoll Rand
Model 5RLNC1
Stock CodeB
Actuation Lever Throttle
Air Cons. @ Free Speed (cfm) 16
Drive size 1/4'' hex
Drive Type 1/4 in. hex
Free Speed (RPM) 1000
Length (In) 10.75
Max Free Speed (rpm) 1000
Series 5
Side to Center (in) 0.81
Torque Range (In Lbs) 13 - 75
Torque Range (Nm) 1.5 - 8.5
Weight3.85 lbs
