Chicago Pneumatic6151630080

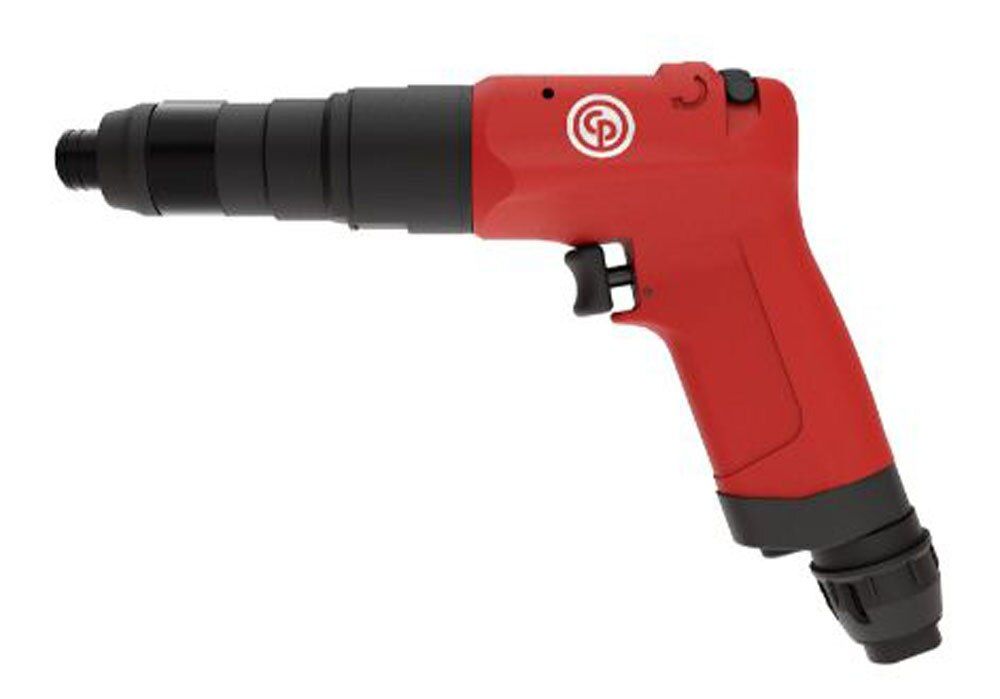

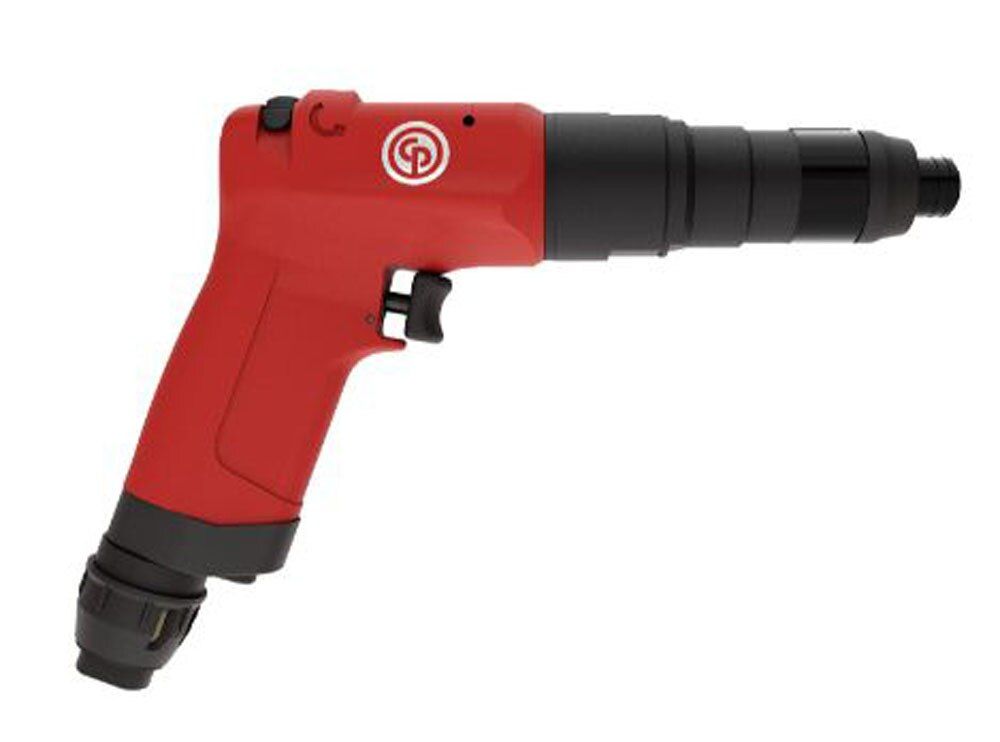

CP2812 SCREWDRIVER - CUSHION
6151630080 | CP2812 SCREWDRIVER - CUSHION
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151630080 | CP2812 SCREWDRIVER - CUSHION6151630080-CP
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| Max torque in forward | 11 Nm |
| Min torque in forward | 2.5 Nm |
| Torque Control System | Non shut-off-clutch |
| Adjustment | Key |
| Body | Aluminum |
| Clutch housing | Steel |
| Clutch Type | Cushion clutch |
| Handle type | Pistol |
| Main Material type | Aluminium, Composite over-sleeve |
| Output drive size (in) | 1/4 |
| Output drive type | Hex |
| Output retainer type | Quick change |
| Reversible | Yes |
| Starting system | Push start |
| Free Speed | 950 rpm |
| Air consumption at free speed | 8.4 l/s |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Height (H) | 160 mm |
| Length (L) | 232 mm |
| Width (W) | 49 mm |
| Weight | 1.1 kg |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Vibration (m/s²) | <2.5 |
| MPN | 6151630080-CP |
