Chicago Pneumatic6151630100

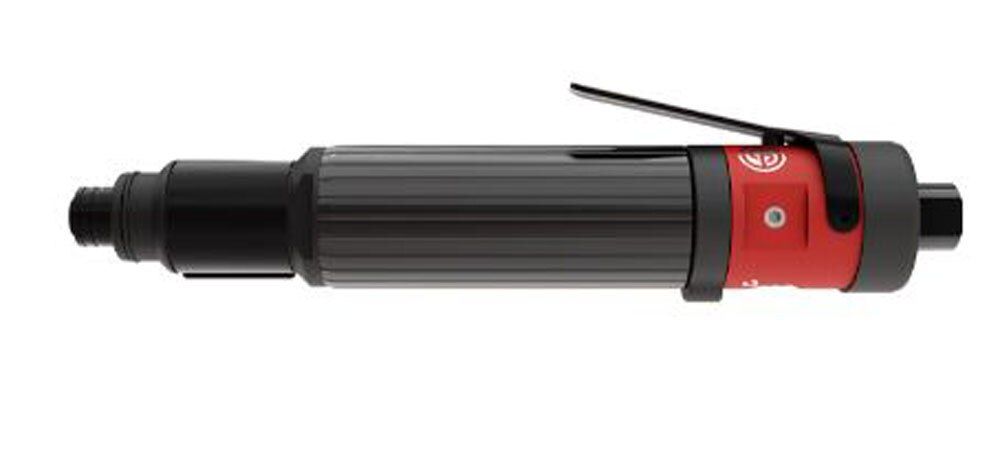

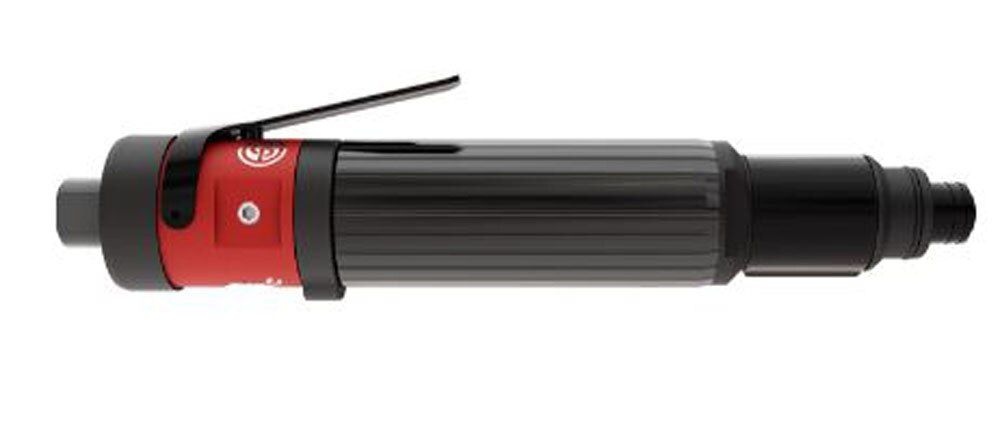

CP2824 SCREWDRIVER - SHUT OFF
6151630100 | CP2824 SCREWDRIVER - SHUT OFF
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151630100 | CP2824 SCREWDRIVER - SHUT OFFCP2824
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| Max torque in forward | 1.6 Nm |
| Min torque in forward | 0.5 Nm |
| Torque Control System | Shut-off-pneumatic valve |
| Adjustment | Key |
| Body | Aluminum |
| Clutch housing | Steel |
| Clutch Type | Ball clutch |
| Handle type | Pistol |
| Main Material type | Aluminium |
| Output drive size (in) | 1/4 |
| Output drive type | Hex |
| Output retainer type | Quick change |
| Reversible | Yes |
| Starting system | Lever |
| Free Speed | 1500 rpm |
| Air consumption at free speed | 6 l/s |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.31 in |
| Min hose diam (5 m hose length) | 8 mm |
| Height (H) | 28 mm |
| Length (L) | 222 mm |
| Width (W) | 28 mm |
| Weight | 0.9 kg |
| Sound Pressure | 73 dB(A) |
| Vibration (m/s²) | <2.5 |
| MPN | CP2824 |
