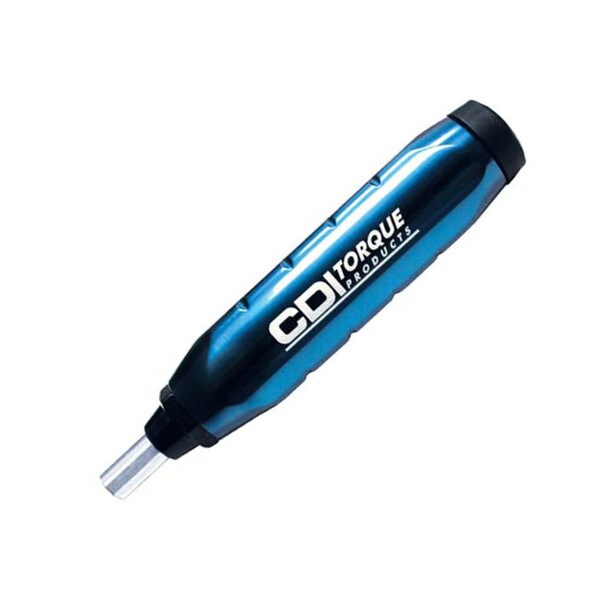

61SP | 1/4'' Torque Screwdrr 10-100 In. Oz. User-Set
Min. Qty (1)
Must be purchased in multiples of 1
Order item in multiples of 1, 2, 3, 4, etc.
Overview
CDI 61SP-CDI
1/4" Torque Screwdrr 10-100 In. Oz. User-Set
Features
- The tamper resistant design of the Pre-Set series is particularly suited for high-volume use in assembly operations. A simple, camover design prevents over-tightening and possible damage to components.
- Pre-set Screwdrivers may be ordered factory set at no additional charge or they may be easily set with any quality torque calibration system. The end cap removes for easy access to the 1/8" hex adjustment screw. A hex adjustment key is included with each driver.
- The Pre-Set series includes four models with available torque settings from 6 in. ozs. up to 40 in.lbs. When precision and repeatability are a must, the choice is simple?CDI Torque Screwdrivers.
- 4 Models Available
- Trilobular Comfort Grip
- Universal 1/4" Hex Bit Holder with Strong Rare Earth Magnet
- Cam-over Torque Limiting Clutch
- Rugged, light weight aluminum body
- May be ordered pre-set from factory
- Automatic lock in Counterclockwise direction
- Accuracy +/- 6% Clockwise direction, from 20- 100% of full scale
- Optional Calibration Certificate available
360° Product Viewer
Features & Benefits
- Universal 1/4" hex bit holder with strong rare earth magnet
- Rugged, Lightweight aluminum body
- Trilobular Comfort Grip
- Automatic lock in counterclockwise direction
Technical Specifications
Max Torque - Ft Lbs
1
Min Torque - In Lbs
0.6
Max Torque - In Lbs
6.25
Min Torque - In Oz
10
Max Torque - In Oz
100
Style
Inline
Drive Size
1/4'' hex
Length - Inches
4.5
