Ingersoll Rand8255-A50-1

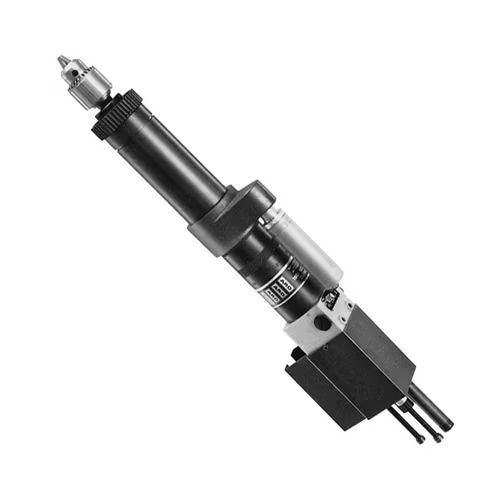

Self Feed Drill, 5/16'' chuck, 5000 rpm
Feed drills provide the selection, performance, and degree of precision to automate a wide range of secondary machining applications simply and economically.
$2,513.84List $3,905.00
Save $1,391.16Total$2,513.84Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8255-A50-1 | Self Feed Drill, 5/16'' chuck, 5000 rpm8255-A50-1
Total$2,513.84
1
Details
Product information
Overview
Ingersoll Rand 8255-A50-1
Self Feed Drill - 5000 Rpm
Features
- Built-in four-way valve enables both manual and remote operation.
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle valve controls allows adjustment of forward and retract strokes.
- Adjustment screw provides infinite stroke length settings.
- Ball bearing spindle support offers precision and long service life.
- Muffled exhaust for a quieter work environment.
| Technical Specifications | |
|---|---|
| Model | 8255-A50-1 |
| Type | Self Feed Drill |
| Manufacturer | Ingersoll Rand |
| Free Speed (RPM) | 5000 |
| SKU | 8255-A50-1 |
| Stock Code | 3 |
| Max Free Speed (rpm) | 5000 |
| Weight (lbs) | 0.1 |
| Stroke Length (in) | 1-1/4 |
| Series | Par-A-Matic |
| Chuck Capacity (in) | 5/16 |
| Thrust @ 90 PSI (lbs) | 170 lbs |
| Gear Reduction | Single |
| MPN | 8255-A50-1 |
| Features & Benefits | |
| 5/64'' SAE 1213 Steel | |
| 3/16'' 2024-T4 Aluminum | |
| 3/16'' Wood, Med. or FRP | |
| 5/64'' SAE 1213 Steel,3/16'' 2024-T4 Aluminum,3/16'' Wood, Med. or FRP | |
