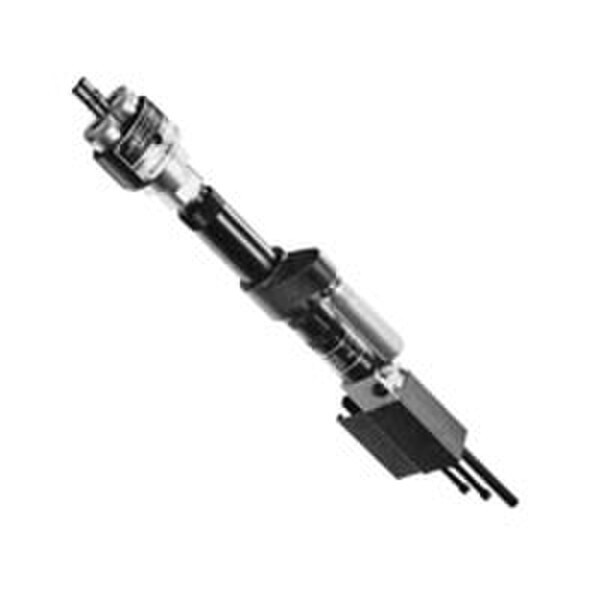

Ingersoll Rand8258-C21-3
Self Feed Twin Drill, 1/4'' chuck, 2100 rpm
Feed drills provide the selection, performance, and degree of precision to automate a wide range of secondary machining applications simply and economically.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8258-C21-3 | Self Feed Twin Drill, 1/4'' chuck, 2100 rpm8258-C21-3
Price on request
Details
Product information
Overview
Ingersoll Rand 8258-C21-3
Self-Feed Twin Drill, 2100 Rpm
- Adjustable spindles allow reapplication as machining requirements change.
- Comprehensive range of American and metric collets available to meet a wide variety of hole specifications.
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle valve controls allow adjustment of forward and retract strokes.
- Adjustment screw provides infinite stroke length settings up to 3.0" maximum.
- Muffled exhaust for a quieter work environment.
| Technical Specifications | |
|---|---|
| Model | 8258-C21-3 |
| Type | Self Feed Twin Drill |
| Manufacturer | Ingersoll Rand |
| Free Speed (RPM) | 2100 |
| SKU | 8258-C21-3 |
| Stock Code | 3 |
| Max Free Speed (rpm) | 2100 |
| Weight (lbs) | 0.1 |
| Stroke Length (in) | 3 |
| Series | Par-A-Matic |
| Chuck Capacity (in) | 1/4 |
| Thrust @ 90 PSI (lbs) | 170 |
| Gear Reduction | Single |
| Sound Level (dB(A)) | 74 |
| MPN | 8258-C21-3 |
| Features & Benefits | |
| 5/64'' Type 304 Stainless Steel | |
| 5/32'' SAE 1213 Steel | |
| 7/32'' 2024-T4 Aluminum | |
| 7/32'' Wood, Med. or FRP | |
| 5/64'' Type 304 Stainless Steel,5/32'' SAE 1213 Steel,7/32'' 2024-T4 Aluminum,7/32'' Wood, Med. or FRP | |
