Atlas Copco8421 0108 10

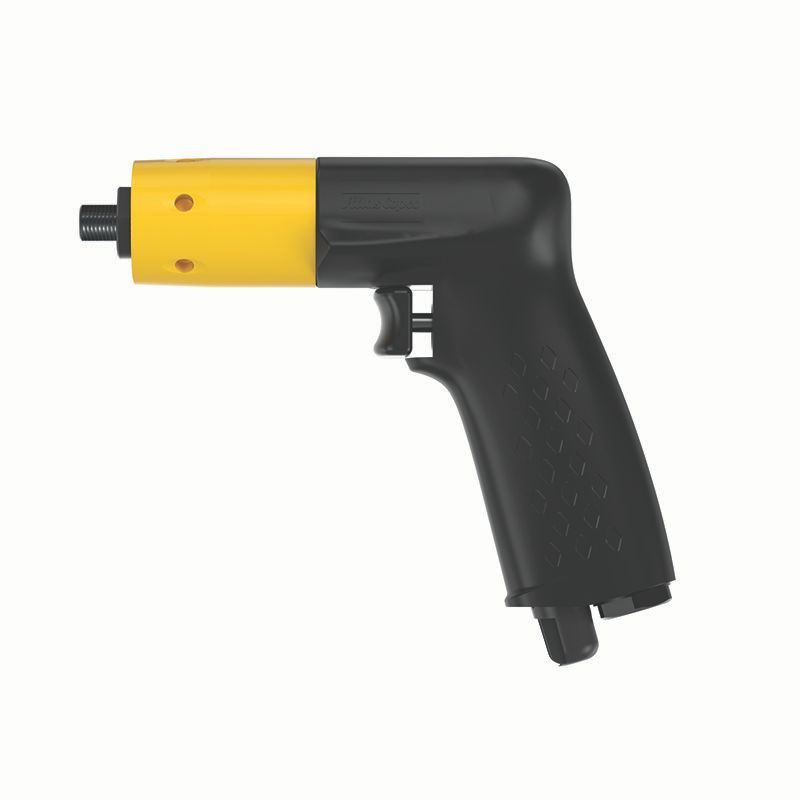

LBB16 EP-010 | 10'' Drill, 7.8 Nm stall, 1000 rpm, 10'' chuck
The LBB screwdrivers are a pneumatic torque screwdriver with superior ergonomics and productivity
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8421 0108 10 | LBB16 EP-010 | 10'' Drill, 7.8 Nm stall, 1000 rpm, 10'' chuckLBB16 EP-010
Price on request
Details
Product information
Overview
Atlas Copco Lbb16 Ep-010, Pistol Grip Drill, 1000 Rpm, 0.4 Hp, With Chuck
Lbb16 Ep-010, Pistol Grip Drill, 1000 Rpm, 0.4 Hp, With Chuck by Atlas Copco, Item Number 8421 0108 10, available for quotation online from Flexible Assembly Systems.
8421 0108 10 LBB16 EP-010, Pistol Grip Drill, 1000 rpm, 0.4 hp, with chuck by Atlas Copco
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| chuckcapacityrangemax | 10 mm |
| chuckcapacityrangemin | 0.8 mm |
| diameter | 34 mm |
| frontlength | 47 mm |
| height | 131 mm |
| length | 206 mm |
| rechosesize | 6.3 mm |
| threadsize | UNF 3/8' - 24 |
| weight | 1.5 lb |
| fronttype | Chuck |
| modeltype | Pistol |
| freespeed | 1000 r/min |
| airconsumptionatfreespeed | 8 l/s |
| maxworkingpressure | 100 psig |
| soundpressure | 80 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 290 W |
| MPN | LBB16 EP-010 |
| Features & Benefits | |
| Very low noise level | |
| Comfortable grip For high precision | |
| Lube Free | |
