Atlas Copco8421 0108 12

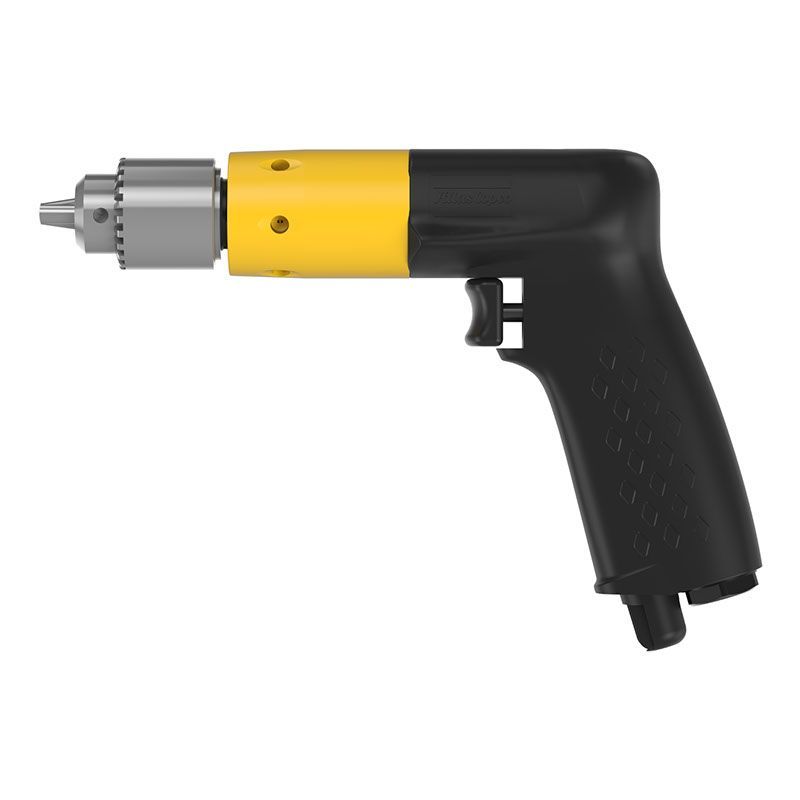

LBB16 EPX-010 | 10'' Drill, 12.3 Nm stall, 1000 rpm, 10'' chuck
The LBB screwdrivers are a pneumatic torque screwdriver with superior ergonomics and productivity
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8421 0108 12 | LBB16 EPX-010 | 10'' Drill, 12.3 Nm stall, 1000 rpm, 10'' chuckLBB16 EPX-010
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| chuckcapacityrangemax | 10 mm |
| chuckcapacityrangemin | 0.8 mm |
| diameter | 33 mm |
| distancecentertoside | 16.5 mm |
| e | 27 mm |
| frontlength | 47 mm |
| height | 131 mm |
| length | 206 mm |
| rechosesize | 6.3 mm |
| threadsize | UNF 3/8' - 24 |
| weight | 1.5 lb |
| fronttype | Chuck |
| modeltype | Pistol |
| stalltorque | 12.3 Nm |
| freespeed | 1000 r/min |
| airconsumptionatfreespeed | 9.5 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 93 dB(A) |
| soundpressure | 82 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 340 W |
| MPN | LBB16 EPX-010 |
| Features & Benefits | |
| Very low noise level | |
| Comfortable grip For high precision | |
| Lube Free | |
