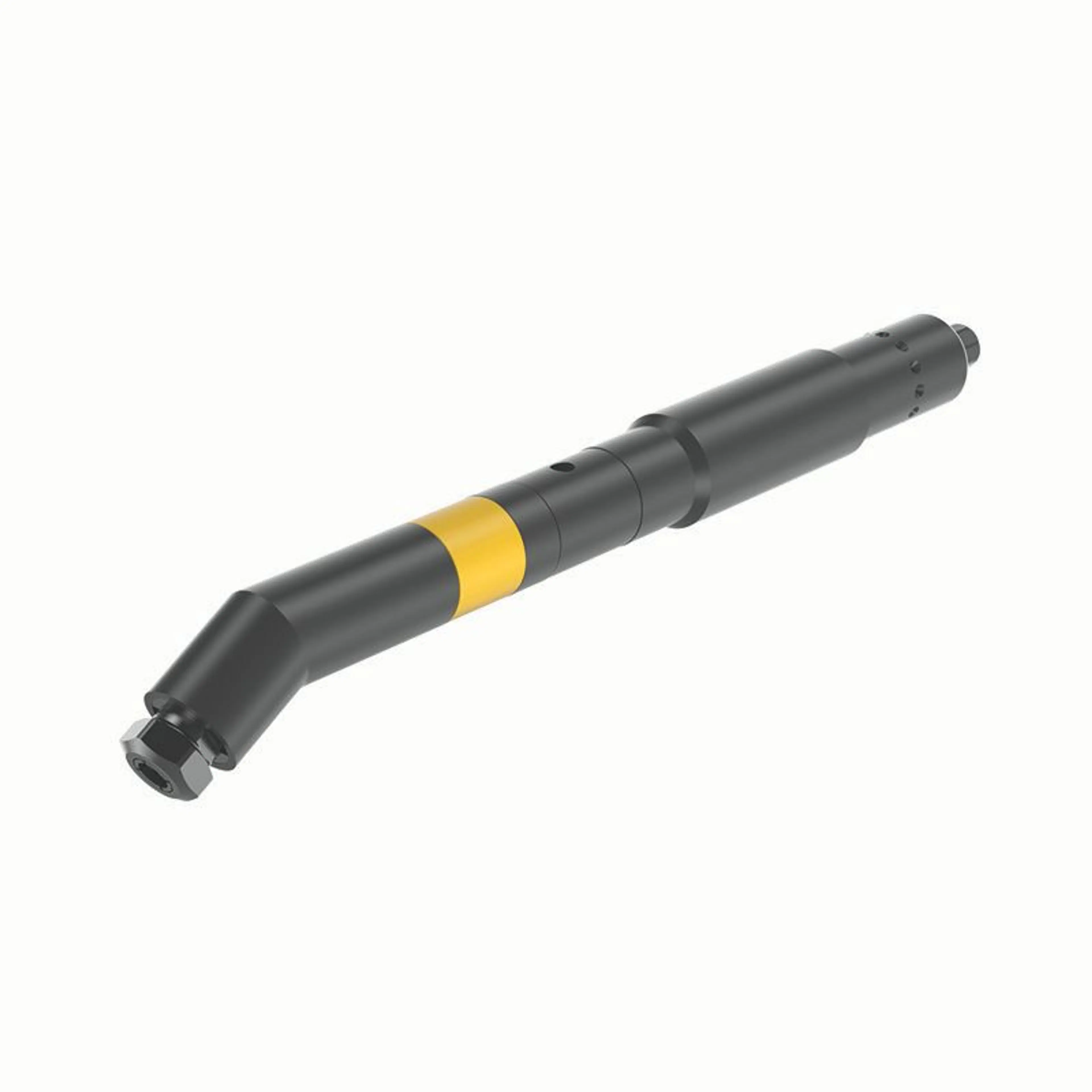

Atlas Copco8421 0123 22
BHM30C-5-0 MKII
8421 0123 22 | BHM30C-5-0 MKII
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8421 0123 22 | BHM30C-5-0 MKII8421 0123 22
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| colletsize | 5 mm |
| deliveredcolletsize | 3.3 mm |
| diameter | 17 mm |
| frontlength | 122 mm |
| headheight | 28 mm |
| height | 20 mm |
| length | 161 mm |
| weight | 0.43 lb |
| fronttype | Collet |
| gearratio | 0.93 |
| unittype | Drill head |
| headangle | 30° |
| headtype | Standard |
| maxworkingpressure | 100 psig |
| MPN | 8421 0123 22 |
