Atlas Copco8421 0124 05

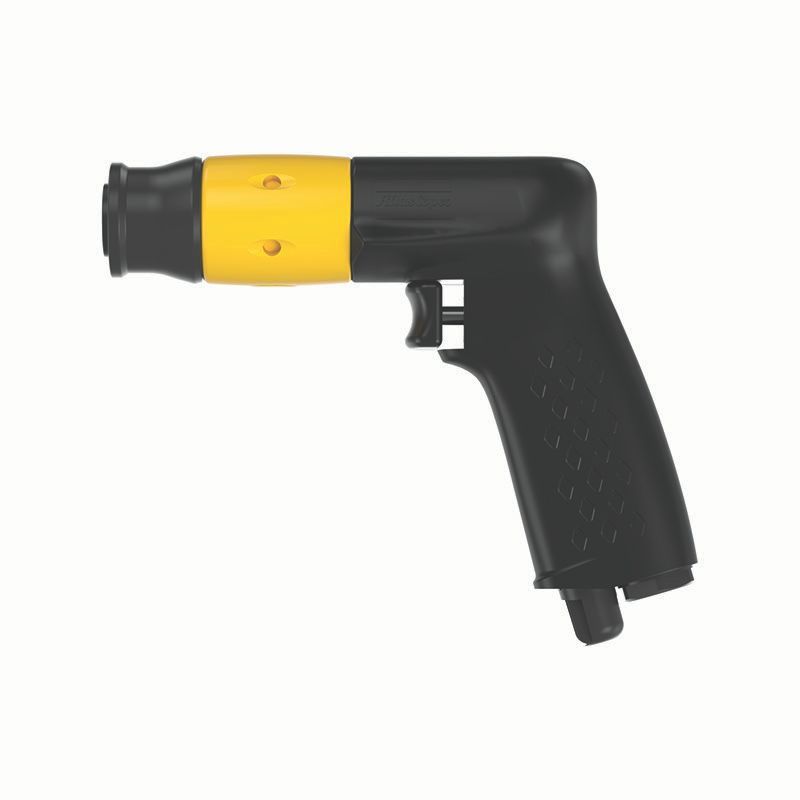

LBP16M-005 | Pistol Grip Modular Drill, 0.45 hp, 500 rpm
A lightweight tool with a powerful air motor combined with interchangeable angle heads equals excellent flexibility in any handheld drilling operation.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8421 0124 05 | LBP16M-005 | Pistol Grip Modular Drill, 0.45 hp, 500 rpmLBP16M-005
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| diameter | 35 mm |
| frontlength | 40 mm |
| height | 132 mm |
| length | 159 mm |
| rechosesize | 6.3 mm |
| weight | 1.2 lb |
| fronttype | Modular |
| modeltype | Pistol |
| stalltorque | 24.6 Nm |
| freespeed | 500 r/min |
| airconsumptionatfreespeed | 9.5 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 93 dB(A) |
| soundpressure | 82 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-3 |
| power | 340 W |
| MPN | LBP16M-005 |
| Features & Benefits | |
| Quick Change System | |
| Indexable head | |
| High power lube free motor | |
