Atlas Copco8421 0220 70
LBS 24 H010--40
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8421 0220 70 | LBS 24 H010--408421 0220 70
Price on request
Details
Product information
Overview

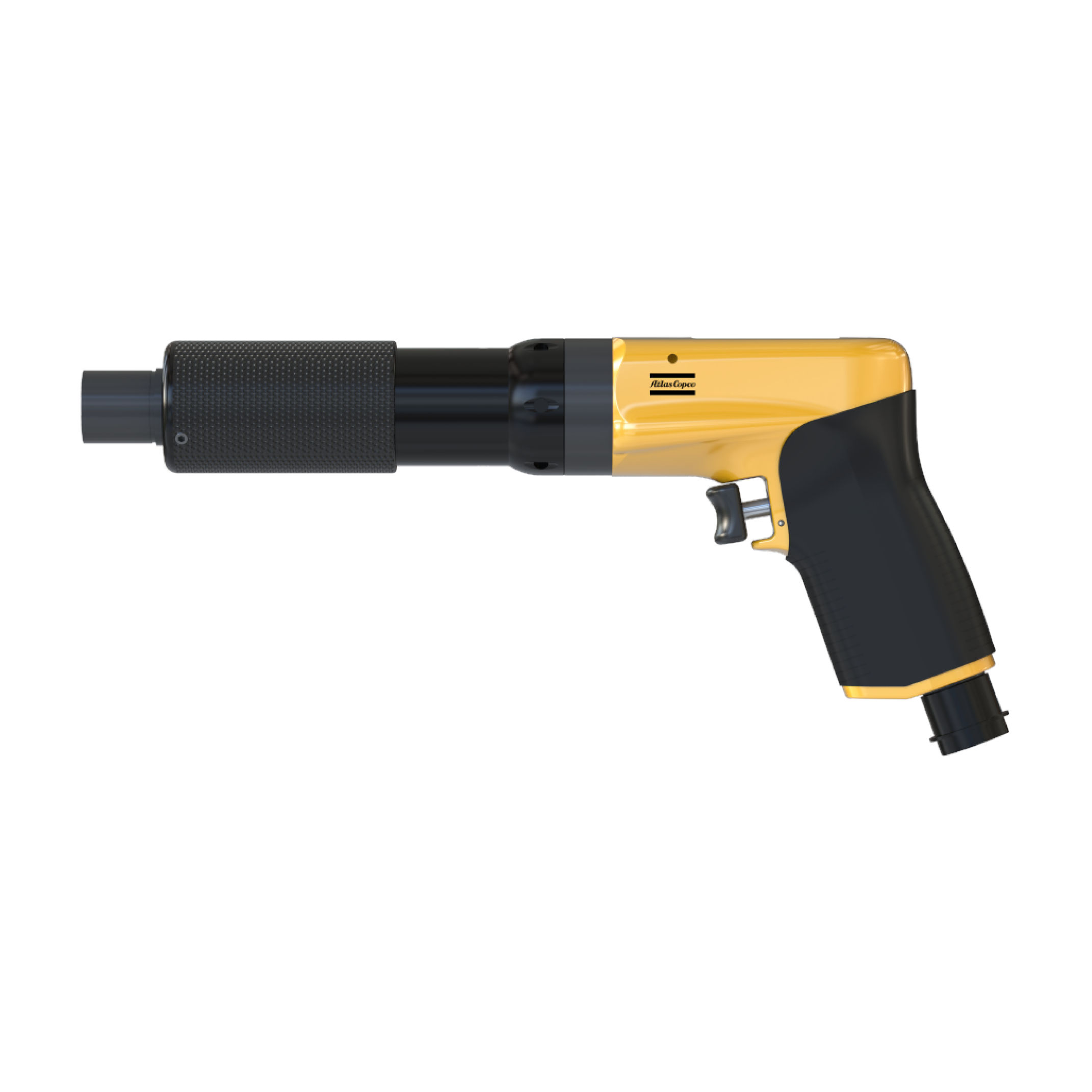

Atlas Copco Lbs 24 H010--40
Lbs 24 H010--40 by Atlas Copco, Item Number 8421 0220 70, available for quotation online from Flexible Assembly Systems.
8421 0220 70 LBS 24 H010--40 by Atlas Copco
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| rechosesize | 6.3 mm |
| settingrange | 6 mm |
| stroke | 40 mm |
| threadsize | UNF 1/4' - 28 1B |
| weight | 2.8 lb |
| freespeed | 1000 r/min |
| airconsumptionatfreespeed | 5.9 l/s |
| soundpressure | 74 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-5 |
| vibrationvalue | <2.5 m/s² |
| eulegislation | 2006/42/EC (MD) |
| eustandard | ISO 11148-3 |
| MPN | 8421 0220 70 |
