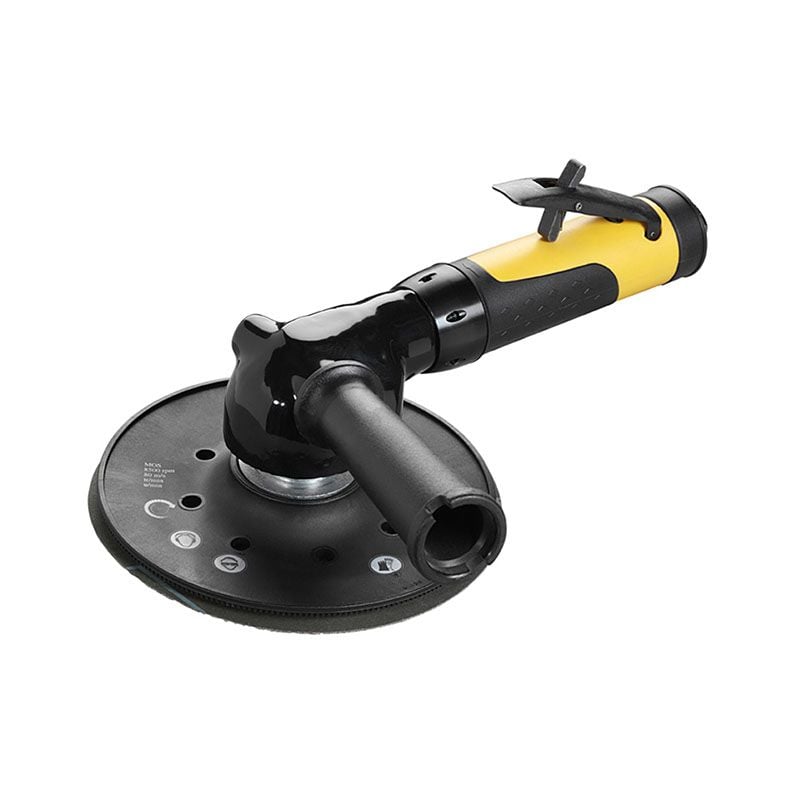

8423 0125 29 | Angle Grinders image 1
Click the image to zoom
Atlas Copco
  • Free shipping on orders over $999
  • Over 23 years in business
  • Free expert advice
  • In-house service and calibration department
  • Low price guarantee
  • Safe and secure checkout
Atlas Copco8423 0125 29

Angle Grinders

8423 0125 29 | Angle Grinders

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Warning:California Proposition 65Trade Regulations Advisory Notice

Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

Documents3 files

Details

Product information

Overview

Atlas Copco 8423 0125 29

Angle Grinders

No matter which of our vane grinders you choose you will get high power, low weight, vibrations and noise levels, and durability.
  • LSV18 series – For work in cramped spaces, the LSV18 series is small yet powerful, and lubrication free. Features: Speed governor, sealed anglehead, thermally insulated handle and lubrication-free air motor.
  • LSV28 series – Small, yet powerful giving 0.75 kW (1 hp), available in an extended version, for optimal accessibility. Features: Speed governor, sealed angle head, thermally insulated handle and lubrication-free air motor (LSV28 S060-18 model).
  • LSV38 – If you are looking for the most powerful one-hand die grinder on the market, then you have found it – up to 1.3 kW (1.7 hp). Features: Speed governor, sealed angle head and lubrication-free air motor, thermally insulated handle. Autobalancer (SA models) reduces the vibrations by up to 50 %, lockable spindle and adjustable wheel guard.
  • LSV48 – Our most powerful angle vane grinder, 1.9 kW (2.5 hp) for ultimate productivity. Features: Speed governor, sealed angle head and lubrication-free air motor, thermally insulated handle. Autobalancer (SA models) reduces the vibrations by up to 50%, lockable spindle.
Technical Specifications
airinletthreadbsp3/8 in
height78 mm
heightoverspindle67 mm
length300 mm
maxwheeldia100 mm
rechosesize10 mm
spindlelength16.6 mm
spindlethread3/8-24 UNF
weight3.7 lb
supporthandleincludedNo
autobalancerNo
modeltypeAngle
motortypeVane
maxfreespeed13000 r/min
airconsumptionatfreespeed14.5 l/s
airconsumptionatmaxoutput21.5 l/s
maxworkingpressure90 psig
soundpower92 dB(A)
soundpressure81 dB(A)
soundstandardISO15744
sounduncertainty3 dB(A)
vibrationstandardISO28927-1
vibrationuncertainty2.8 m/s²
vibrationvalue8.3 m/s²
eaccertifiedYes
eulegislation2006/42/EC
eustandardISO 11148-7
ukregulationsS.I. 2008/1597
ukstandardISO 11148-7
lubricationfreeNo
maxoutput0.75 kW
MPN8423 0125 29
