Atlas Copco8423 0705 80

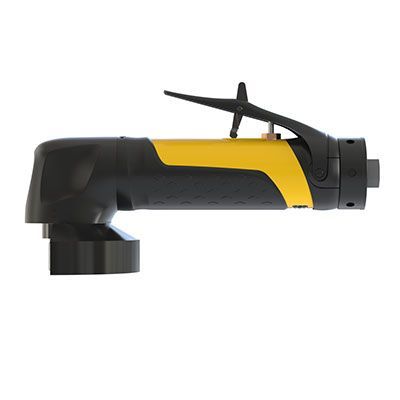

3'' Grinder, 17000 rpm
8423 0705 80 | 3'' Grinder, 17000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8423 0705 80 | 3'' Grinder, 17000 rpm8423 0705 80
Price on request
Details
Product information
Overview
Atlas Copco 3 In. Angle Air Grinder With Wheel Guard, 17000 Rpm, 0.6 Hp
3 In. Angle Air Grinder With Wheel Guard, 17000 Rpm, 0.6 Hp by Atlas Copco, Model Number LSV19 S170-327), available for quotation online from Flexible Assembly Systems.
LSV19 S170-327 3 in. Angle Air Grinder with wheel guard, 17000 rpm, 0.6 hp by Atlas Copco
| Technical Specifications | |
|---|---|
| airinletthreadnpt | 1/4 in |
| height | 71 mm |
| heightoverspindle | 71 mm |
| length | 186 mm |
| maxwheeldia | 3 in |
| rechosesize | 10 mm |
| spindlelength | 17 mm |
| spindlethread | 3/8-24 UNF |
| weight | 1.6 lb |
| supporthandleincluded | No |
| autobalancer | No |
| modeltype | Angle |
| motortype | Vane |
| maxfreespeed | 17000 r/min |
| airconsumptionatfreespeed | 6.6 l/s |
| airconsumptionatmaxoutput | 11.2 l/s |
| maxworkingpressure | 90 psig |
| soundpressure | 80 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-1 |
| vibrationuncertainty | 2.4 m/s² |
| vibrationvalue | 7.9 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO11148-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO11148-7 |
| lubricationfree | Yes |
| maxoutput | 0.45 kW |
| MPN | 8423 0705 80 |
