Click the image to zoom
Atlas Copco8423 0706 00

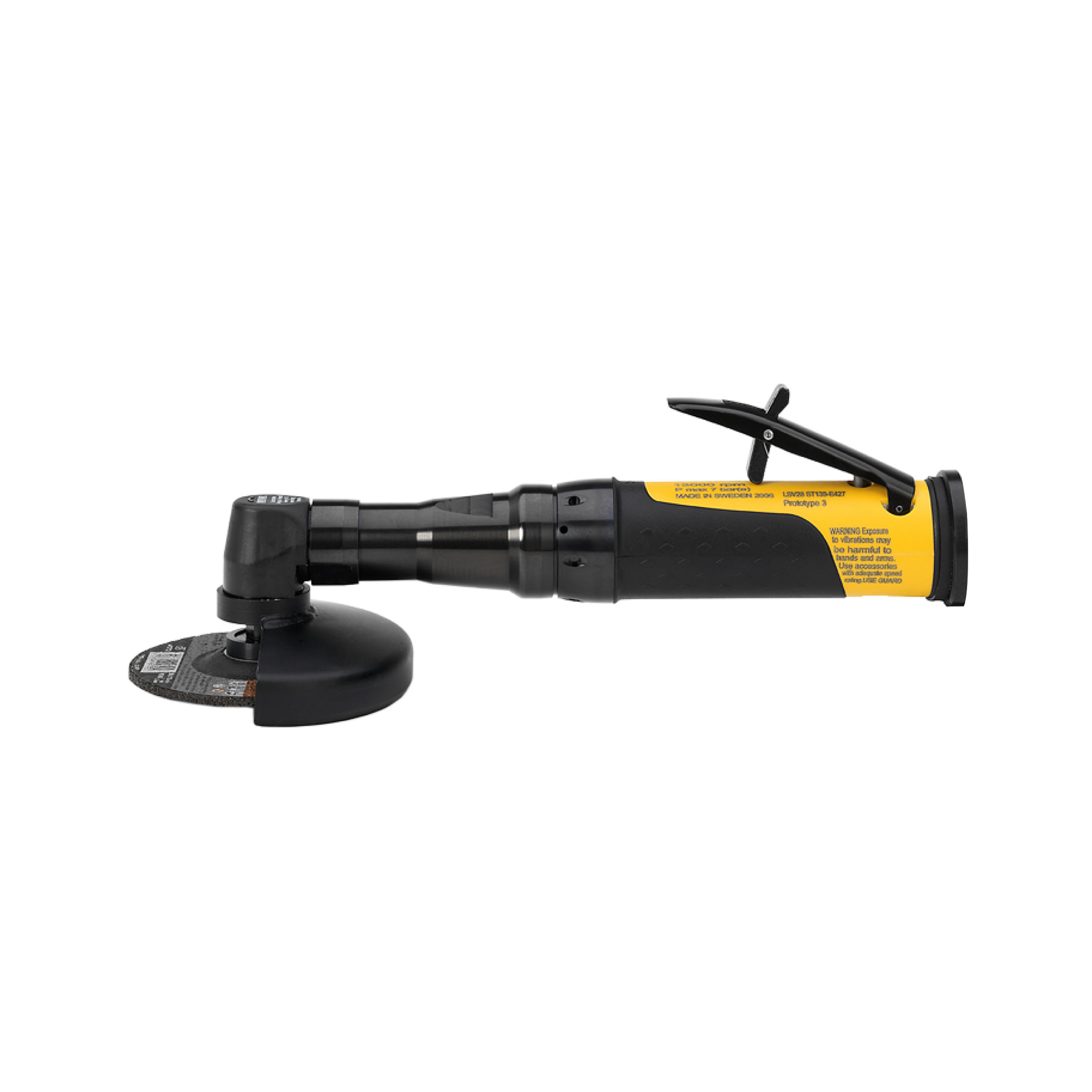

4'' Grinder, 13000 rpm
8423 0706 00 | 4'' Grinder, 13000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8423 0706 00 | 4'' Grinder, 13000 rpm8423 0706 00
Price on request
Details
Product information
Overview
Atlas Copco 8423 0706 00
Lsv 28 St13-427E
LSV 28 ST13-427E| Technical Specifications | |
|---|---|
| airinletthreadnpt | 3/8 in |
| height | 78 mm |
| heightoverspindle | 67 mm |
| length | 300 mm |
| maxwheeldia | 4 in |
| rechosesize | 10 mm |
| spindlelength | 16.6 mm |
| spindlethread | 3/8-24 UNF |
| weight | 3.7 lb |
| supporthandleincluded | No |
| autobalancer | No |
| modeltype | Angle |
| motortype | Vane |
| maxfreespeed | 13000 r/min |
| airconsumptionatfreespeed | 7.6 l/s |
| airconsumptionatmaxoutput | 17.5 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 97 dB(A) |
| soundpressure | 86 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-1 |
| vibrationuncertainty | 2.5 m/s² |
| vibrationvalue | 7.3 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-7 |
| lubricationfree | No |
| maxoutput | 0.75 kW |
| MPN | 8423 0706 00 |
