Atlas Copco8423 0715 10

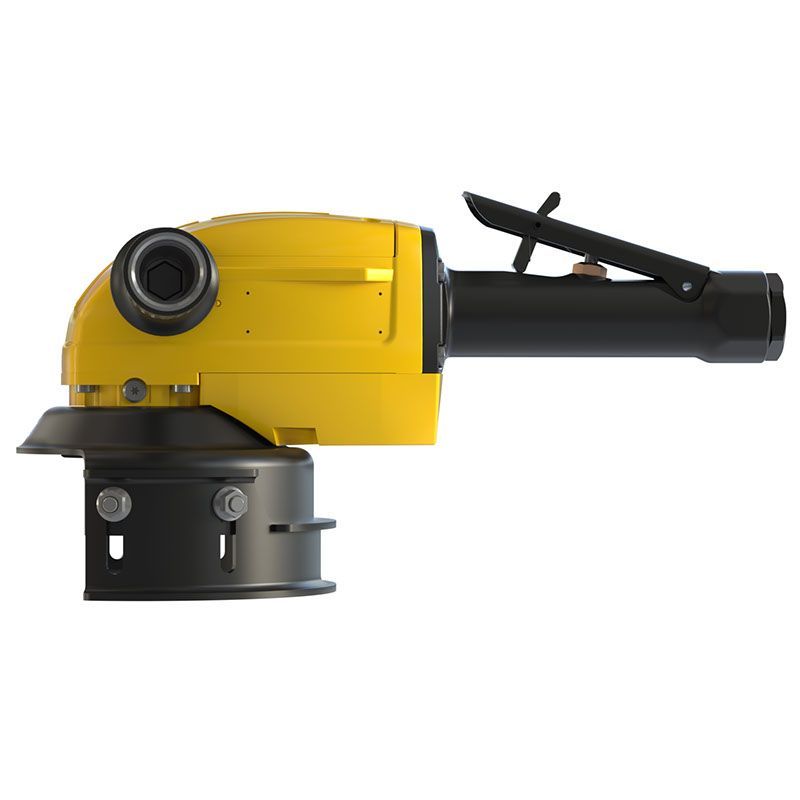

7'' Turbine Grinder, type 27, 8500 rpm
8423 0715 10 | 7'' Turbine Grinder, type 27, 8500 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8423 0715 10 | 7'' Turbine Grinder, type 27, 8500 rpm8423 0715 10
Price on request
Details
Product information
Overview
Atlas Copco 7 In. Angle Turbine Grinder For Depressed Center Wheels, Type 27, 8500 Rpm
7 In. Angle Turbine Grinder For Depressed Center Wheels, Type 27, 8500 Rpm by Atlas Copco, Model Number GTG40 S085-727), available for quotation online from Flexible Assembly Systems.
GTG40 S085-727 7 in. Angle Turbine Grinder for depressed center wheels, type 27, 8500 rpm by Atlas Copco
| Technical Specifications | |
|---|---|
| airinletthreadnpt | 1/2 in |
| height | 151 mm |
| heightoverspindle | 123 mm |
| maxwheeldia | 7 in |
| rechosesize | 16 mm |
| spindlelength | 22.3 mm |
| spindlethread | 5/8-11 UNC |
| weight | 9.5 lb |
| supporthandleincluded | Yes |
| autobalancer | Yes |
| modeltype | Angle |
| motortype | Turbine |
| maxfreespeed | 8500 r/min |
| airconsumptionatfreespeed | 20 l/s |
| airconsumptionatmaxoutput | 60 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 96 dB(A) |
| soundpressure | 85 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-1 |
| vibrationuncertainty | 1.5 m/s² |
| vibrationvalue | 6.4 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-7 |
| maxoutput | 4.5 kW |
| lubricationfree | Yes |
| MPN | 8423 0715 10 |
