Atlas Copco8423 2525 22

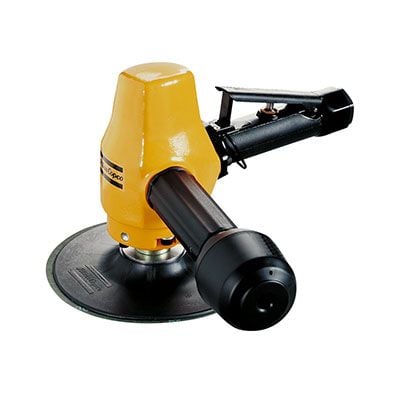

7'' Turbine Sander, 6000 rpm
8423 2525 22 | 7'' Turbine Sander, 6000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8423 2525 22 | 7'' Turbine Sander, 6000 rpm8423 2525 22
Price on request
Details
Product information
Overview
Atlas Copco 7 In. Angle Turbine Sander, 6000 Rpm
7 In. Angle Turbine Sander, 6000 Rpm by Atlas Copco, Model Number GTG25 S060-700), available for quotation online from Flexible Assembly Systems.
GTG25 S060-700 7 in. Angle Turbine Sander, 6000 rpm by Atlas Copco
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 3/8 in |
| height | 105 mm |
| heightoverspindle | 84 mm |
| maxpaddia | 230 mm |
| rechosesize | 16 mm |
| spindlelength | 23.4 mm |
| spindlethread | 5/8-11 UNC |
| weight | 4.2 lb |
| supporthandleincluded | Yes |
| autobalancer | Yes |
| modeltype | Angle |
| motortype | Turbine |
| maxfreespeed | 6000 r/min |
| airconsumptionatfreespeed | 9 l/s |
| airconsumptionatmaxoutput | 34 l/s |
| maxworkingpressure | 90 psig |
| soundpressure | 77 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-3 |
| vibrationuncertainty | 1.1 m/s² |
| vibrationvalue | 3.8 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO 11148-8 |
| maxoutput | 2.5 kW |
| lubricationfree | Yes |
| MPN | 8423 2525 22 |
