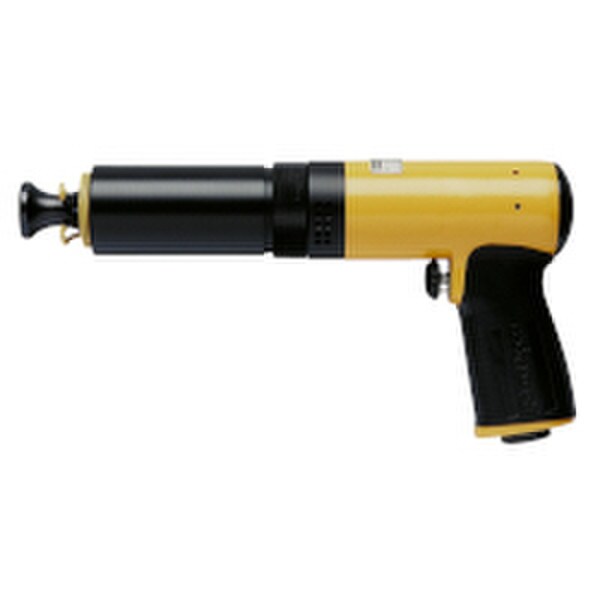

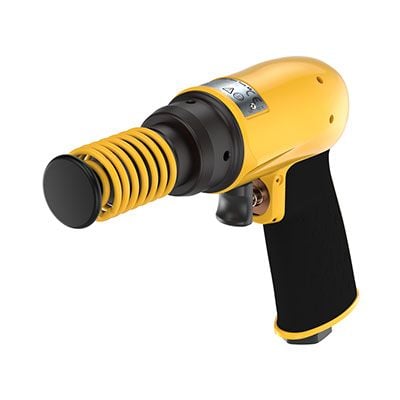

Atlas CopcoRRH10P
8426 1110 20 | RRH10P, Riveting Hammer, 9.6 ft lbs
Vibration-damped Riveting Hammer
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
RRH10P | 8426 1110 20 | RRH10P, Riveting Hammer, 9.6 ft lbs8426 1110 20
Price on request
Details
Product information
Overview
Atlas Copco 9.6 Ft Lb Vibration-Damped Riveting Hammer, 25 Hz Blows, Push Start, 4.6 In. Stroke
9.6 Ft Lb Vibration-Damped Riveting Hammer, 25 Hz Blows, Push Start, 4.6 In. Stroke by Atlas Copco, Model Number RRH10P), available for quotation online from Flexible Assembly Systems.
RRH10P 9.6 ft lb Vibration-damped Riveting Hammer, 25 hz blows, Push Start, 4.6 in. stroke by Atlas Copco
| Technical Specifications | |
|---|---|
| pistondia | 19 mm |
| rechosesize | 10 mm |
| rivetsetshank | 12.7 mm |
| stroke | 118 mm |
| weight | 4.4 lb |
| airframeref | 5XB |
| blows | 1500 per-min |
| dampening | Vibration-damped |
| energyperblow | 9.6 ft-lb |
| operation | Push start |
| airconsumption | 12 l/s |
| airinletthreadbsp | 1/4 |
| maxworkingpressure | 100 psi |
| soundpower | 102 dB(A) |
| soundpressure | 91 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-10 |
| vibrationuncertainty | 1.7 m/s² |
| vibrationvalue | 5.1 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | 8426 1110 20 |
| Features & Benefits | |
| Push Start | |
| 4.6 in stroke | |
| 25 hz blows | |
| Push Start,4.6 in stroke,25 hz blows | |
