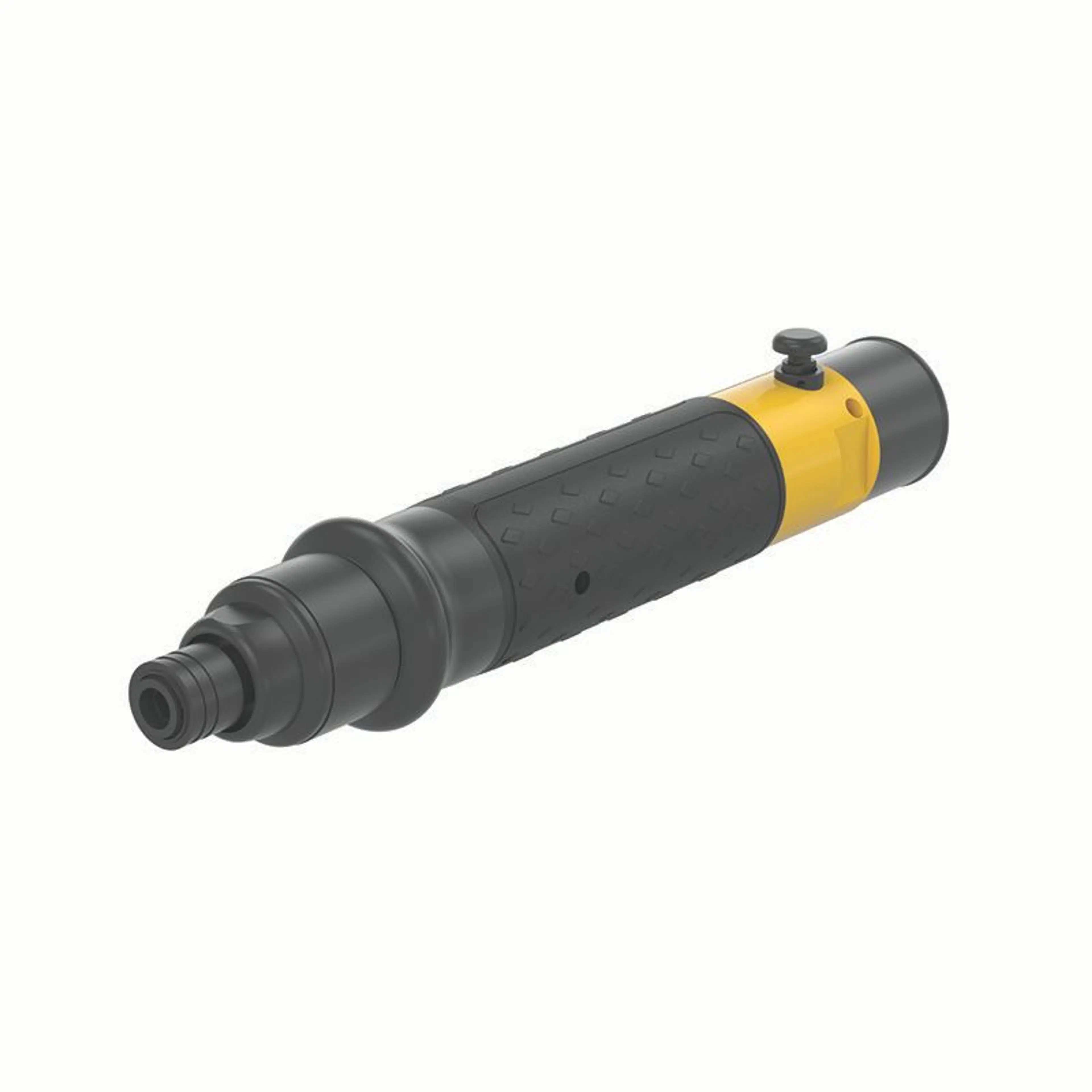

8431 0146 05 | LUM10 PR03 | Inline Pneumatic Screwdriver, 0.1 - 1.5 Nm, 300 rpm, reversible

(0)No Reviews yet

The LUM series is the workhorse of Atlas Copco's pneumatic screwdrivers. Designed to be comfortable to work with all day and to be durable in a tough production environment, they combine the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Atlas Copco 8431 0146 05

Lum10 Pr03, Inline Pnuematic Screwdriver W/ Push To Start Trigger, 0.8-13 In Lb


Atlas Copco pneumatic LUM screwdrivers have a fast and accurate shut-off clutch for smooth performance and high quality tightening. They are suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness.

Features:
  • Superior ergonomics
    • Small tool for low weight
    • Fast shut-off clutch gives lower reaction torque
  • Compact size for accessibility in cramped spaces
  • Reversible
  • Quick change chuck
  • Lubrication-free
  • Straight screwdrivers should be used with a torque arm for best ergonomics
Back

Features & Benefits

  • push-to-start function and reverse button.
  • Reduced strain on operator
  • Reversible
  • Fast shut-off clutch Lubrication free
Back

Technical Specifications

SKU: 8431 0146 05
airinletthread
1/8 in
csdistance
15 mm
length
206 mm
recommendedhosesize
6 mm
weight
0.9 lb
modeltype
Straight
shutoff
Yes
torquerangemax
1.5 Nm
torquerangemin
0.1 Nm
torquerangesoftjointmax
1.5 Nm
torquerangesoftjointmin
0.1 Nm
freespeed
300 r/min
airconsumptionatfreespeed
3 l/s
maxworkingpressure
100 psig
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC (MD)
eustandard
ISO 11148-6
ukregulations
S.I. 2008/1597
ukstandard
ISO 11148-6
