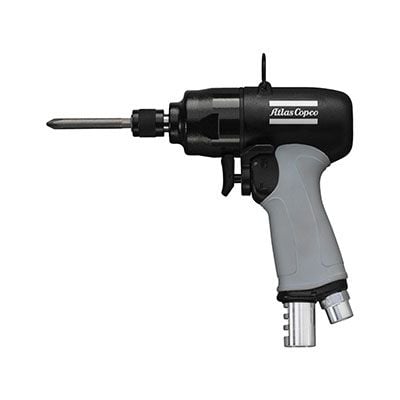

8431 0257 90 | S2480 | S2480 Impact Drive Screwdriver image 1
Click the image to zoom
Atlas Copco
  • Free shipping on orders over $999
  • Over 23 years in business
  • Free expert advice
  • In-house service and calibration department
  • Low price guarantee
  • Safe and secure checkout
Atlas Copco8431 0257 90

S2480 | S2480 Impact Drive Screwdriver

PRO Impact Drive Screwdrivers are lightweight tools offering a productive blend of operator comfort and exceptional performance.

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Documents1 file

Recommended Accessories

2 items

Add-on accessories that can be purchased alongside this product.

ProductdiameterlengthPriceQty
8202 1350 208202 1350 20 | SWIVEL COUPLING MULT24 mm66.2 mm1View details
8202 1350 268202 1350 26 | SWIVEL COUPLING MULT0.94 in2.6 in1View details

Details

Product information

Overview

For unmatched fastening performance, PRO screwdrivers are the obvious choice. These versatile, highly engineered tools meet and surpass today’s demands for performance in terms of speed, precision and durability. Add well -balanced designs that contribute to good ergonomics, and PRO screwdrivers take your productivity to a whole new level. Whatever your application one of our four different clutch types will be the ideal match for the job.

PRO Impact Drive Screwdrivers
Ideal for fast assembly and disassembly, a double-hammer mechanism really gets the job done. These lightweight tools offer a productive blend of operator comfort and exceptional performance. There are two models – both are reversible with a simple flip-off lever on the side of the tool shaft.

PRO Direct Drive Screwdrivers
Our direct-drive models stall when they reach maximum torque and are well suited for self-tapping screws and wood screws.

PRO Slip-Clutch Screwdrivers
Our slip-clutch screwdrivers provide an implied pulsating force, or slip, once you reach the desired torque. Features include adjustable torque settings, trigger and push start for pistol grips, and lever and push start for straight models. They are suitable for soft joints or for use with sheet metal screws, wood screws or self-tapping screws where the torque level may peak temporarily during rundown.

PRO Shut-off Screwdrivers
If it’s high torque accuracy you are looking for, these are the tools for you! Our fast shut-off models deliver the smooth performance and high quality tightening you need.

Technical Specifications
airinletthread1/4 in
boltsizemin5 mm
length132 mm
quickchangechuck1/4 in
rechosesize10 mm
weight0.78 kg
hexdriveYes
proYes
clutchtypeDouble hammer
maxtorque20 Nm
torquerangemax13 Nm
torquerangemin6 Nm
freespeed6500 r/min
airconsumption10 l/s
maxworkingpressure100 psi
soundpower101 dB(A)
soundpressure90 dB(A)
soundstandardISO15744
sounduncertainty3 dB(A)
vibrationstandardISO28927-2
vibrationuncertainty1.9 m/s²
vibrationvalue6.4 m/s²
eaccertifiedYes
eulegislation2006/42/EC
eustandardISO 11148-6
ukregulationsS.I. 2008/1597
ukstandardISO 11148-6
MPNS2480
Features & Benefits
Speed and versatility
Exceptional performance
Well balanced, good ergonomics
Reversible
Well balanced
good ergonomics
