Atlas Copco8431 0269 90

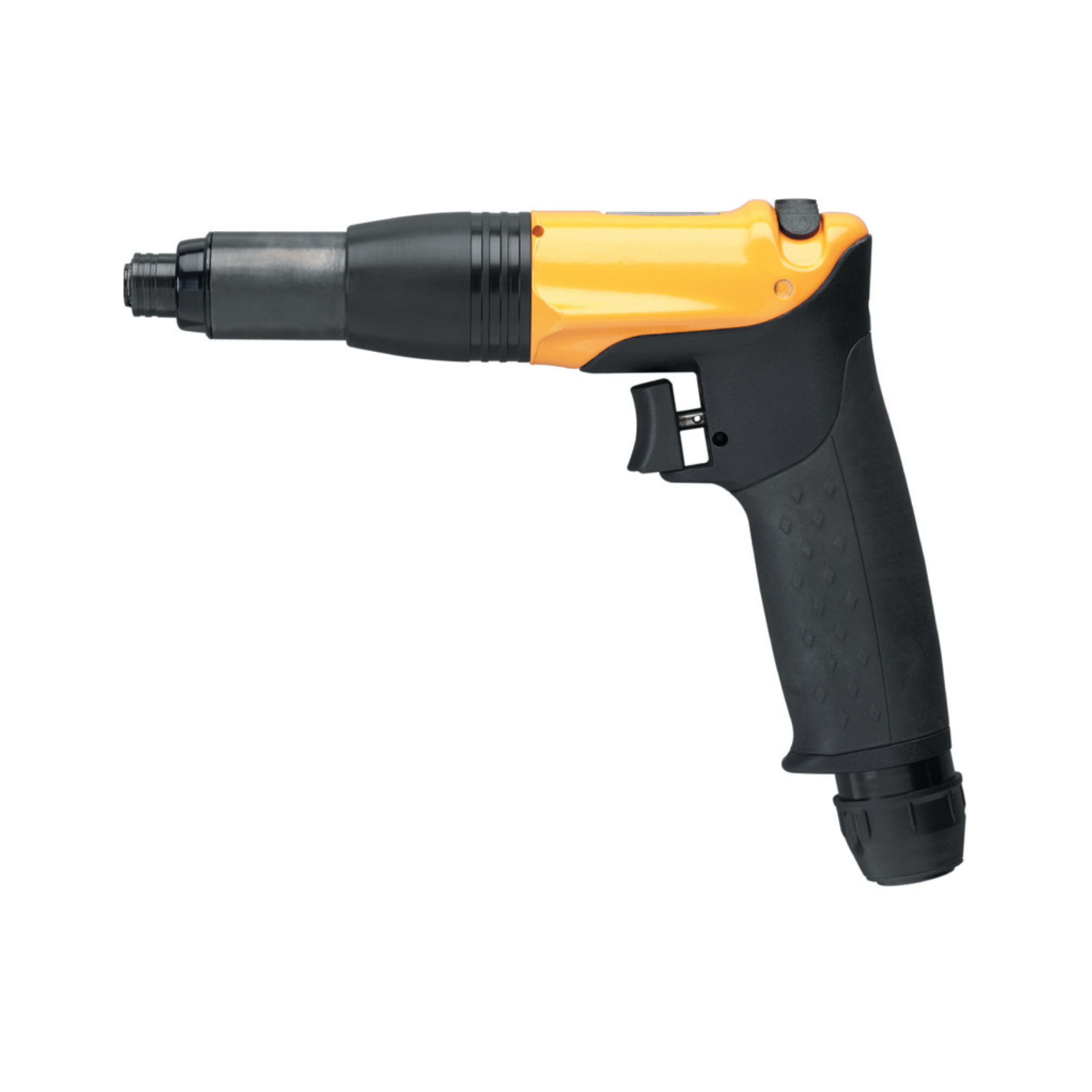

LUM32 HR10 | Pneumatic Screwdriver, 5 - 10 Nm, 750 rpm
The workhorse of Atlas Copco's pneumatic screwdriver line-up. Designed to be comfortable to work with all day and to be durable in a tough production environment, they combine the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0269 90 | LUM32 HR10 | Pneumatic Screwdriver, 5 - 10 Nm, 750 rpmLUM32 HR10
Price on request
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 BLD1BLD1 | Light-Duty Balancer 0.9 - 2.2 lbs$76.08 | $76.08 | 1 | View details |
| $150.00 | 1 | View details |
Details
Product information
Overview
Atlas Copco 8431 0269 90
Lum32 Hr10, Pnuematic Screwdriver W/ Trigger Start, 44.2-88.5 In Lb
The LUM pistol grip range comes in several different configurations:
- HR: Model with non-balanced grip can be used with high grip when feed force is needed or with low grip for minimal reaction force.
- HRX: Model with balanced grip perfectly balanced for standard pistol grip applications.
- HRF: Balanced grip with multiple air inlets for fl exible connection.
- The LUM32 model has the highest force to weight ratio amongst the pneumatic screwdrivers. It is also a tool with low reaction force and fast shut-off because of the position of the clutch. RE reporting models are available, designated with suffi x –RE. Soft stop options are available, designated with the suffi xSS.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| csdistance | 185 mm |
| length | 183 mm |
| recommendedhosesize | 10 mm |
| weight | 1.6 lb |
| modeltype | Pistol |
| shutoff | Yes |
| torquerangesoftjointmax | 10 Nm |
| torquerangesoftjointmin | 5 Nm |
| freespeed | 750 r/min |
| airconsumptionatfreespeed | 7.5 l/s |
| maxworkingpressure | 100 psi |
| soundpressure | 77 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| MPN | LUM32 HR10 |
| Features & Benefits | |
| Traditional-grip can be used with high grip when feed force is needed or with low grip for minimal reaction force. | |
| Equipped with a spring-operated shut-off clutch | |
| Superior ergonomics | |
| Reversible | |
