8431 0311 22 | LUF34 HRD04 | LUF34 HRD04, Pneumatic Screwdriver, 8 - 18 Nm, 440 rpm
Overview

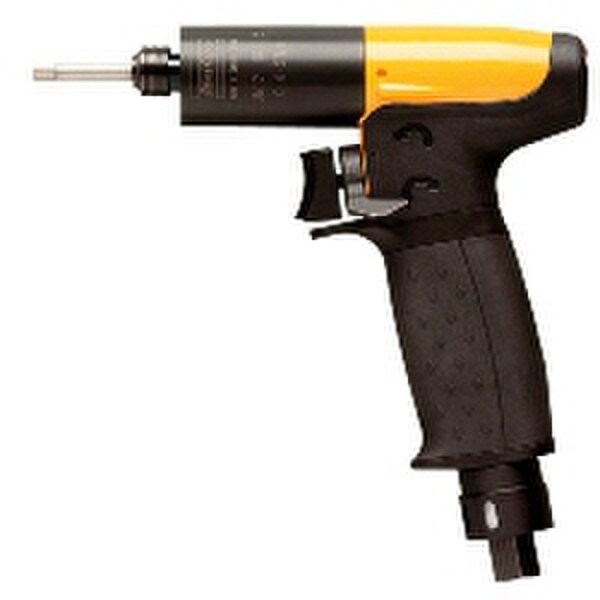

Atlas Copco 8431 0311 22
Direct Drive Screwdriver W/ Trigger Start, 71-160 In Lb
The LUF Series Screwdriver is suitable for applications with self-drilling and wood screws. The grip is designed to balance the weight of the tool evenly to reduce strain on the wrist. Key internal components are manufactured in our own plant in Sweden so we can be certain each tool is up to our quality standard. The LUD screwdriver models do not have clutches, they are direct driven tools." This means that either you release the trigger to stop, or the torque builds up to where the motor can no longer rotate.
Features:- Model with balanced grip are perfectly balanced for standard pistol grip applications
- Compact size for accessibility in cramped spaces
- Reversible
- 1/4 in female hexagon drive for bits
- Lubrication free
Technical Specifications
SKU: 8431 0311 22
airinletthread
1/4 in
csdistance
20 mm
length
212 mm
recommendedhosesize
10 mm
weight
2.6 lb
function
Direct drive
modeltype
Pistol
torquerangemax
18 Nm
torquerangemin
8 Nm
torquerangesoftjointmax
18 Nm
torquerangesoftjointmin
8 Nm
freespeed
440 r/min
airconsumptionatfreespeed
9 l/s
maxworkingpressure
100 psi
soundpressure
79 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
ISO 11148-6
ukregulations
S.I. 2008/1597
ukstandard
ISO 11148-6
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
