Atlas Copco8431 0346 70

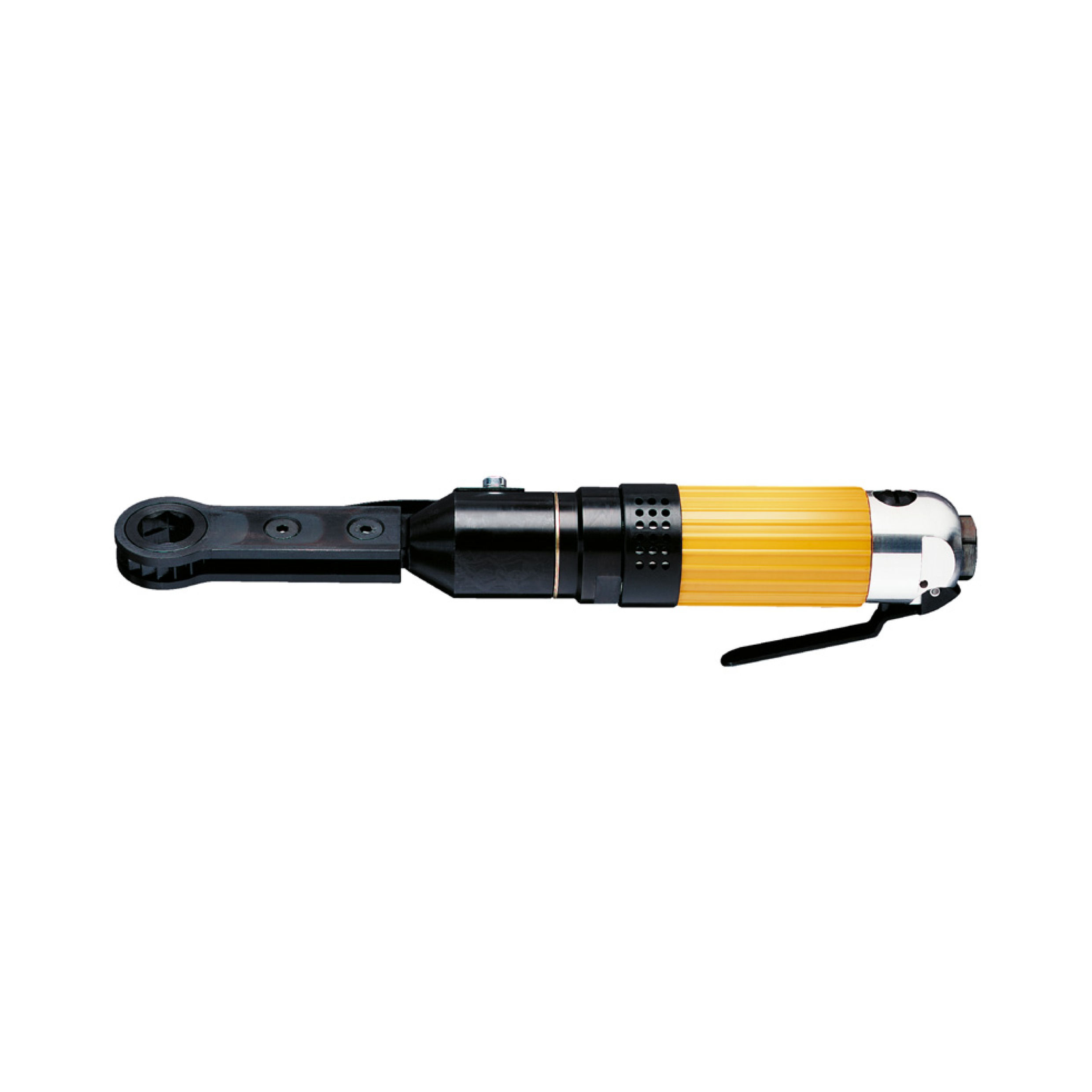

LBR33 S26/118-16 | LBR33 S26/118-16, Ratchet Wrench, 30 Nm, 135 rpm
LBR Non Shut-off Ratchet Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0346 70 | LBR33 S26/118-16 | LBR33 S26/118-16, Ratchet Wrench, 30 Nm, 135 rpmLBR33 S26/118-16
Price on request
Details
Product information
Overview
Atlas Copco 8431 0346 70
Lbr 33 S26/118-16
LBR 33 S26/118-16| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| angleheadcentretoside | 18 mm |
| angleheadheight | 15 mm |
| boltsize | M8-10 mm |
| length | 300 mm |
| recommendedhosesize | 10 mm |
| squaredrive | 16 in |
| weight | 3.1 lb |
| modeltype | Angle |
| reversible | Yes |
| shutoff | No |
| torquesoftjointat3bar | 15 Nm |
| torquesoftjointat63bar | 30 Nm |
| freespeed | 135 r/min |
| airconsumptionatfreespeed | 9.5 l/s |
| maxworkingpressure | 100 psi |
| soundpower | 101 dB(A) |
| soundpressure | 90 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertainty | 0.8 m/s² |
| vibrationvalue | 3.1 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LBR33 S26/118-16 |
| Features & Benefits | |
| Unique accessibility | |
| Low maintenance | |
| Slim ratchet head | |
| Small and robust | |
