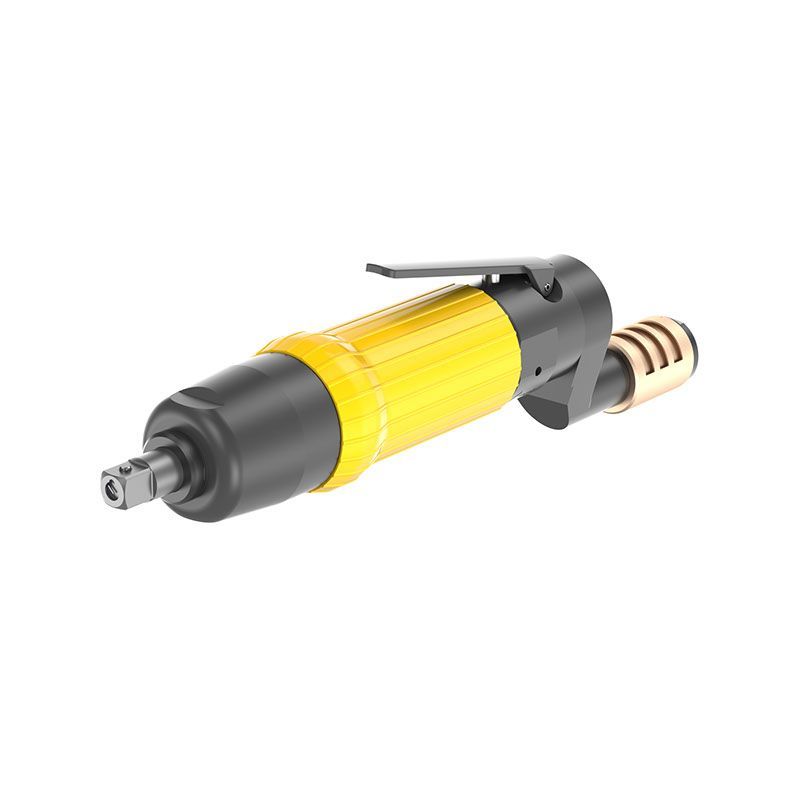

EP7PTX SR10-AT-L | Inline Pulse Tool,utoTrim, low pressure, 16 - 22 Nm, 4000 rpm, 3/8'' square
In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Details
Product information
Overview
Atlas Copco 8431 0368 35
Autotrim Low Pressure, Inline Shut-Off Nutrunner, 12-16 Ft Lb
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:
- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft. High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
(a) To be used as a guide only, final torque depends on type of joint, accessories used and air pressure.
(b) Female hexagon drive. Quick change chuck.
(c) Torque is adjusted by regulating the air pressure.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| boltsize | M6 mm |
| csdistance | 21 mm |
| length | 295 mm |
| outputsize | 3/8' |
| recommendedhosesize | 8 mm |
| squaredrive | 3/8 in |
| weight | 2 lb |
| modeltype | Straight |
| outputtype | Square, Male |
| shutoff | Yes |
| torquerangemax | 22 Nm |
| torquerangemin | 16 Nm |
| freespeed | 4000 r/min |
| airconsumptionunderload | 7 l/s |
| maxworkingpressure | 72 psig |
| nominalworkingpressure | 58 psi |
| soundpressure | 79 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertainty | 1.8 m/s² |
| vibrationvalue | 7.8 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO 11148-6:2012 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO 11148-6:2012 |
| MPN | EP7PTX SR10-AT-L |
| Features & Benefits | |
| High reliability and durability | |
| High speed, short cycle times. | |
| No springs to wear ou | |
| Lubrication free | |
| High reliability and durability,High speed, short cycle times. | |
