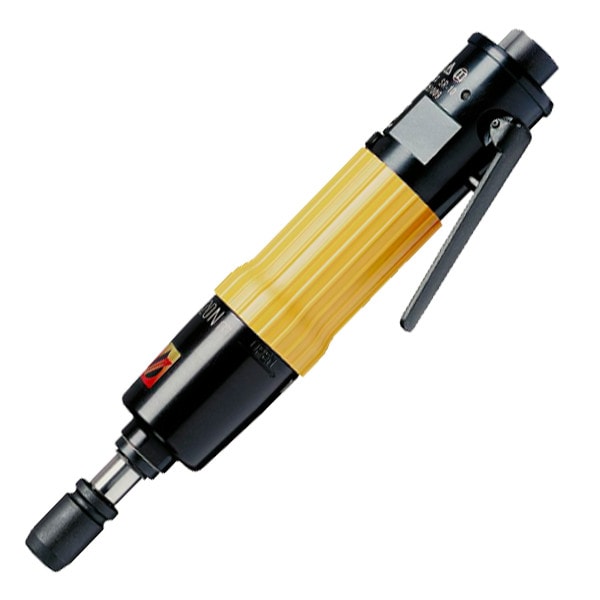

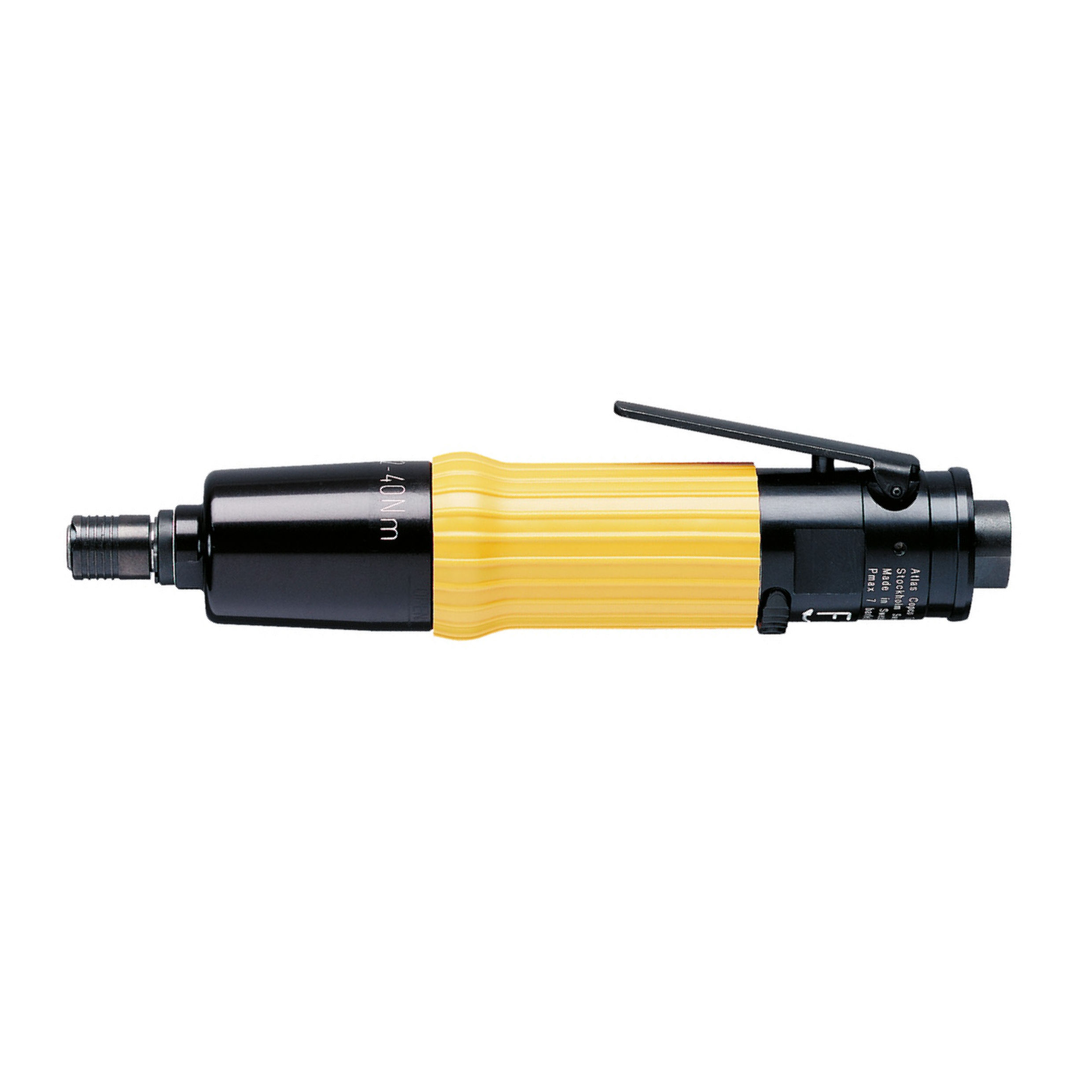

EP8XS SR10 | Inline Pulse Tool, 30 - 52 Nm, 8000 rpm, 3/8'' square
In ErgoPulse non shut-off tools the tool produces pulses until the operator releases the trigger. Preferred in applications where it is an advantage for the operator to be able to control the process by shutting off the tool manually.
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Details
Product information
Overview
Atlas Copco 8431 0369 20
Straight Non Shut-Off Pulse Tool, 22-38 Ft Lbs
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:
- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft. High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
(a) To be used as a guide only, final torque depends on type of joint, accessories used and air pressure.
(b) Female hexagon drive. Quick change chuck.
(c) Torque is adjusted by regulating the air pressure.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| boltsize | M8-M10 mm |
| csdistance | 24 mm |
| length | 244 mm |
| outputsize | 3/8' |
| recommendedhosesize | 8 mm |
| squaredrive | 3/8 in |
| weight | 2 lb |
| modeltype | Straight |
| outputtype | Square, Male |
| shutoff | No |
| torquerangemax | 52 Nm |
| torquerangemin | 30 Nm |
| freespeed | 8000 r/min |
| airconsumptionunderload | 9 l/s |
| maxworkingpressure | 100 psig |
| nominalworkingpressure | 91 psi |
| soundpower | 92 dB(A) |
| soundpressure | 81 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertainty | 2.2 m/s² |
| vibrationvalue | 9.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO 11148-6:2012 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO 11148-6:2012 |
| MPN | EP8XS SR10 |
| Features & Benefits | |
| High reliability and durability | |
| High speed, short cycle times. | |
| No springs to wear ou | |
| Lubrication free | |
| High reliability and durability,High speed, short cycle times. | |
