Features & Benefits
- High reliability and durability
- High speed, short cycle times.
- Lubrication free
- No springs to wear ou
Technical Information
Technical Specifications
Technical Specifications
SKU: 8431 0369 40
Manufacturer Atlas Copco

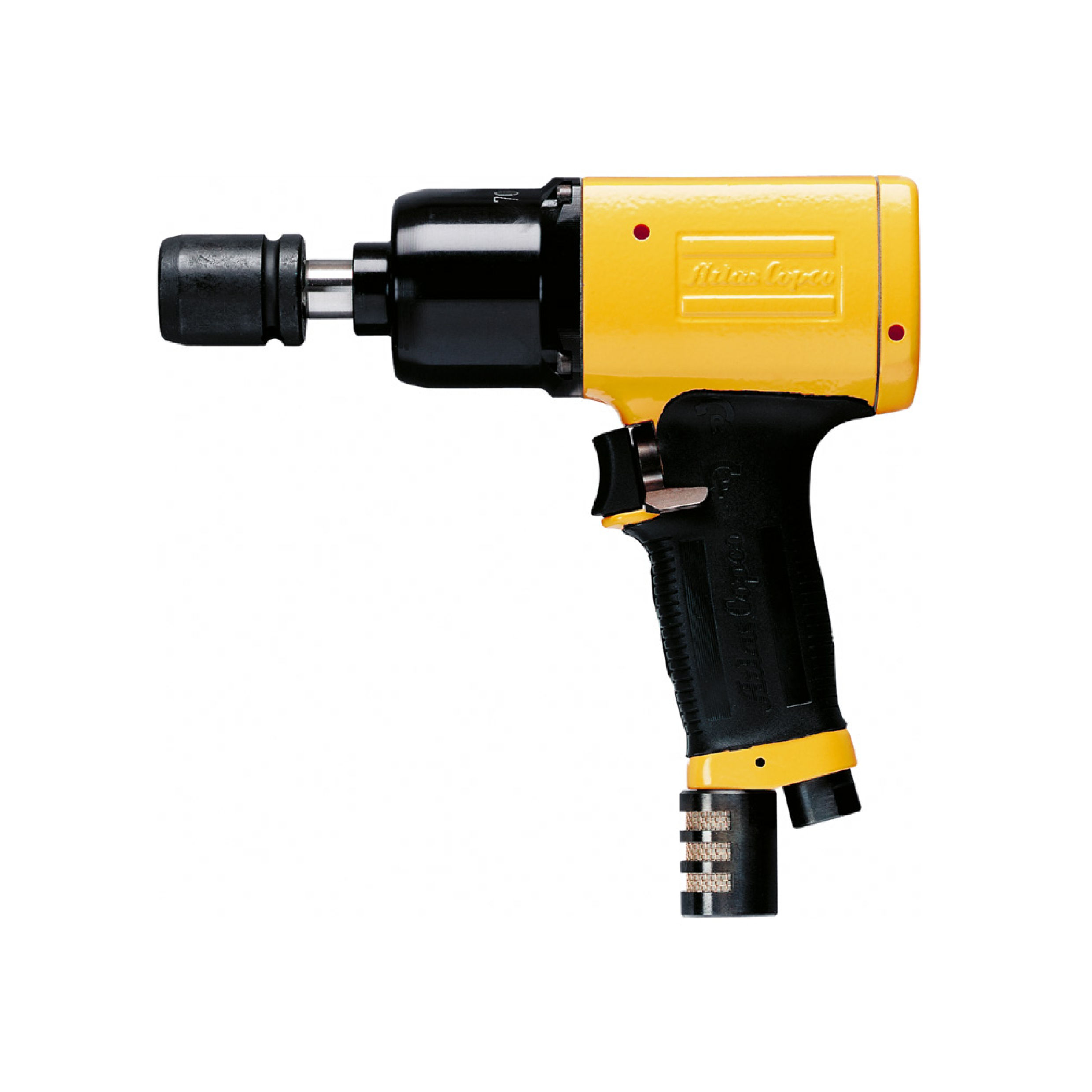

Model EP10XS HR13
Stock CodeC
Air Inlet 1/4 in.
Bolt Size - mm M10
Drive size 1/2'' square
Drive Type 1/2 in. square
Free Speed (RPM) 6000
Length (mm) 168
Max Air Consumption (cfm) 23
Max Free Speed (rpm) 6000
Min Hose Size (mm) 10
Series EP XS
Torque Range (Ft Lbs) 37 - 52
Torque Range (In Lbs) - 620
Torque Range (Nm) 50 - 70
Weight2.9 lbs
We strive to provide as much technical information as possible. If you need more tech data, let us know!
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
