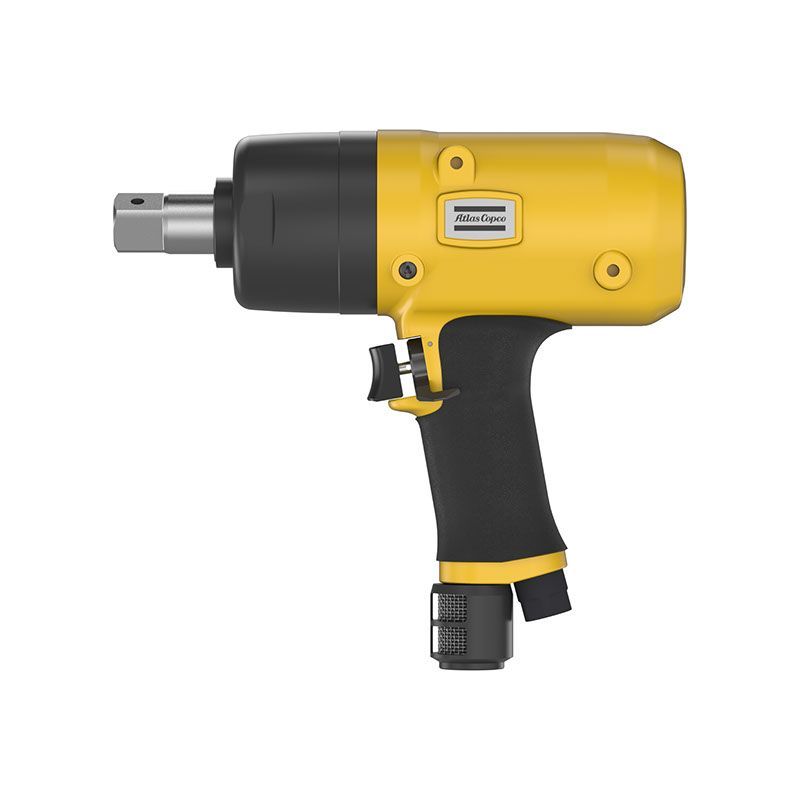

EP14XS HR13 | Pulse Tool, 110 - 160 Nm, 3500 rpm, 1/2'' square
In ErgoPulse non shut-off tools the tool produces pulses until the operator releases the trigger. Preferred in applications where it is an advantage for the operator to be able to control the process by shutting off the tool manually.
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Details
Product information
Overview
Atlas Copco 8431 0371 50
Ep14Xs Hr13, Ergopulse Non Shut-Off Pulse Tool, 81-118 Ft Lbs
ErgoPulse PTS is a reliable and powerful workhorse and offers the same shut-off mechanism as the peak performer PTX. All PTS models can also be used as lubrication free, just like other ErgoPulse tools.
Features:
- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
(a) To be used as a guide only, final torque depends on type of joint, accessories used and air pressure.
(b) Female hexagon drive. Quick change chuck.
(c) Torque is adjusted by regulating the air pressure.
| Technical Specifications | |
|---|---|
| airinletthread | 3/8 in |
| boltsize | M14 mm |
| csdistance | 34 mm |
| length | 188 mm |
| outputsize | 1/2' |
| recommendedhosesize | 13 mm |
| squaredrive | 1/2 in |
| weight | 5.3 lb |
| modeltype | Pistol |
| outputtype | Square, Male |
| shutoff | No |
| torquerangemax | 160 Nm |
| torquerangemin | 110 Nm |
| freespeed | 3500 r/min |
| airconsumptionunderload | 14 l/s |
| maxworkingpressure | 100 psig |
| nominalworkingpressure | 91 psi |
| soundpower | 96 dB(A) |
| soundpressure | 85 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertainty | 1.4 m/s² |
| vibrationvalue | 4 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO 11148-6:2012 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO 11148-6:2012 |
| MPN | EP14XS HR13 |
| Features & Benefits | |
| High reliability and durability | |
| High speed, short cycle times. | |
| No springs to wear ou | |
| Lubrication free | |
| High reliability and durability,High speed, short cycle times. | |
