8431 0372 05 | EP7XS SR10 | Inline Pulse Tool, 20 - 31 Nm, 10000 rpm, 3/8'' square
Overview

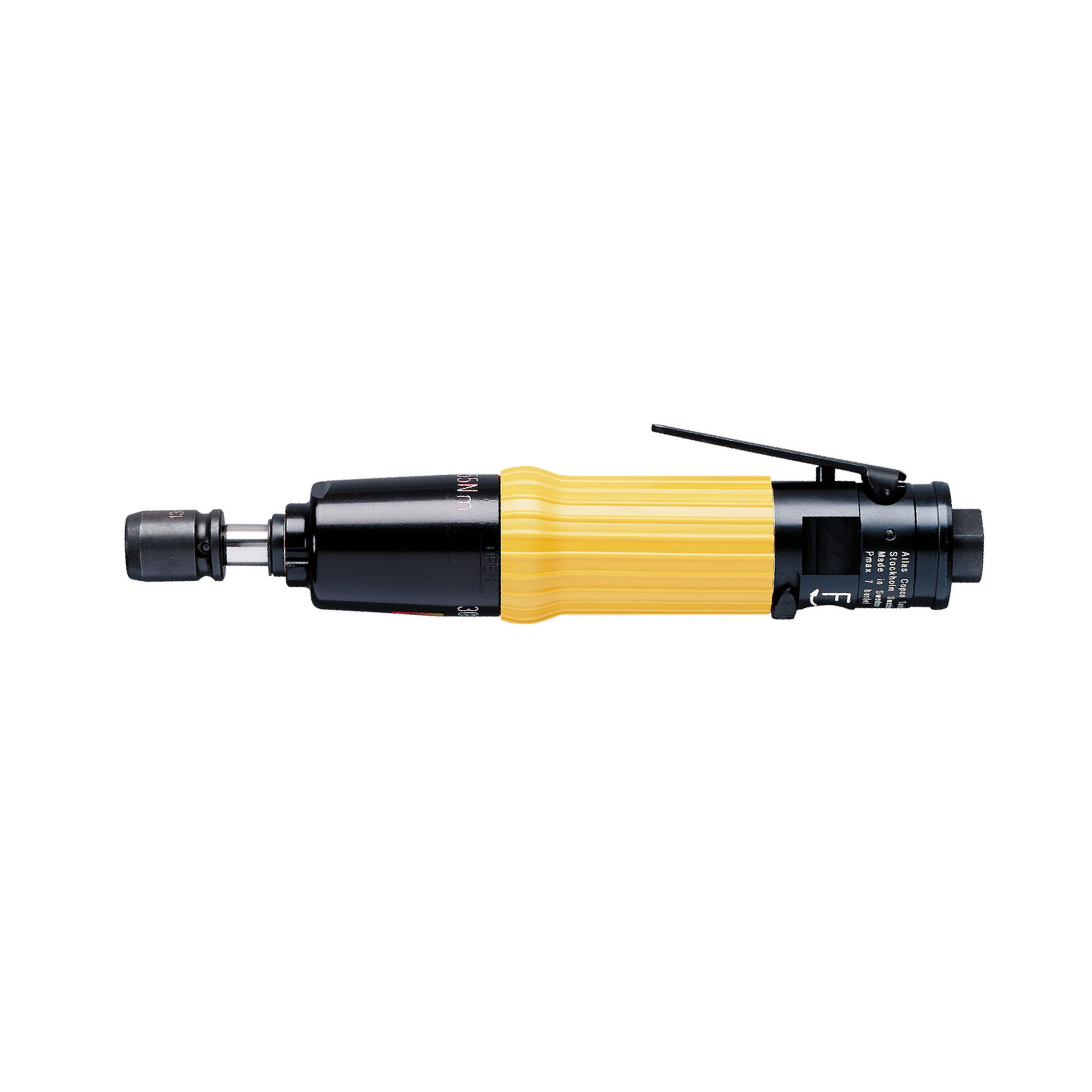

Atlas Copco 8431 0372 05
Straight Non Shut-Off Pulse Tool, 15-23 Ft Lbs
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft. High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
(a) To be used as a guide only, final torque depends on type of joint, accessories used and air pressure.
(b) Female hexagon drive. Quick change chuck.
(c) Torque is adjusted by regulating the air pressure.
Features & Benefits
- High reliability and durability
- High speed, short cycle times.
- Lubrication free
- No springs to wear ou
Technical Specifications
Model
EP7XS SR10
Stat 1
10000 rpm
Stat 2
15 - 23 Ft Lb
Recommended Torque Range (Ft Lb)
15-23
Drive size
3/8'' square
Manufacturer
Atlas Copco
Length (mm)
221
Min Torque (Ft Lb)
15
Max Air Consumption (cfm)
17
Free Speed (RPM)
10000
SKU
8431 0372 05
Stock Code
3
Air Inlet
1/4 in.
Style
Inline
Clutch Type
Non Shut Off
Max Torque (In Lb)
274
Max Torque (Ft Lb)
23
Min Torque (Nm)
20
Max Torque (Nm)
31
Bolt Size - mm
M8
Max Free Speed (rpm)
10000
Weight (lbs)
1.5
Series
EP XS
Drive Type
3/8 in. square
Min Hose Size (mm)
8
