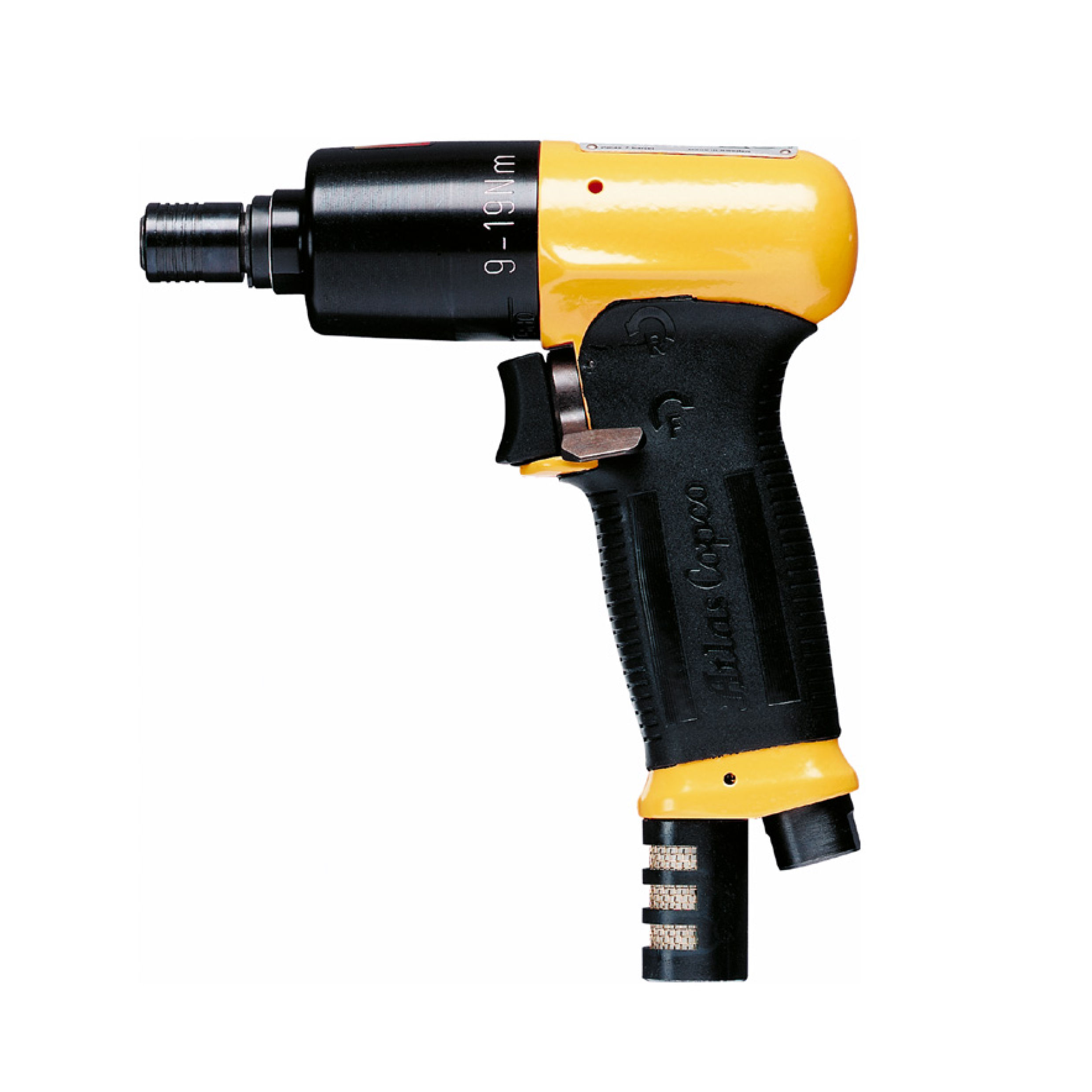

8431 0372 20 | EP6XS HR10 | Pulse Tool, 10 - 20 Nm, 8000 rpm, 3/8'' square

(0)No Reviews yet

In ErgoPulse non shut-off tools the tool produces pulses until the operator releases the trigger. Preferred in applications where it is an advantage for the operator to be able to control the process by shutting off the tool manually.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Atlas Copco 8431 0372 20

Ep6Xs Hr10, Ergopulse Non Shut-Off Pulse Tool, 7-15 Ft Lbs


ErgoPulse PTS is a reliable and powerful workhorse and offers the same shut-off mechanism as the peak performer PTX. All PTS models can also be used as lubrication free, just like other ErgoPulse tools.

Features:
  • TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
  • High reliability.
  • Consistent torque over time, low meanshift.
  • High level of durability.
  • High speed, short cycle times.
  • One-handed operation.
  • High power-to-weight ratio.
  • No springs to wear out.
  • No wear on key parts.
  • High precision components.
  • No reaction forces.
  • Light, well-balanced tools.
  • Low noise levels.
  • Lubrication free.

(a) To be used as a guide only, final torque depends on type of joint, accessories used and air pressure.
(b) Female hexagon drive. Quick change chuck.
(c) Torque is adjusted by regulating the air pressure.

Back

Features & Benefits

  • High reliability and durability
  • High speed, short cycle times.
  • Lubrication free
  • No springs to wear ou
Back

Technical Specifications

SKU: 8431 0372 20
airinletthread
1/4 in
boltsize
M6 mm
csdistance
22 mm
length
152 mm
outputsize
3/8'
recommendedhosesize
8 mm
squaredrive
3/8 in
weight
1.8 lb
modeltype
Pistol
outputtype
Square, Male
shutoff
No
pulseunitcasingtighteningtorque
25 Nm
torquerangemax
20 Nm
torquerangemin
10 Nm
freespeed
8000 r/min
airconsumptionunderload
8 l/s
maxworkingpressure
100 psig
nominalworkingpressure
91 psi
soundpressure
79 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC (MD)
eustandard
EN ISO 11148-6:2012
ukregulations
S.I. 2008/1597
ukstandard
EN ISO 11148-6:2012
