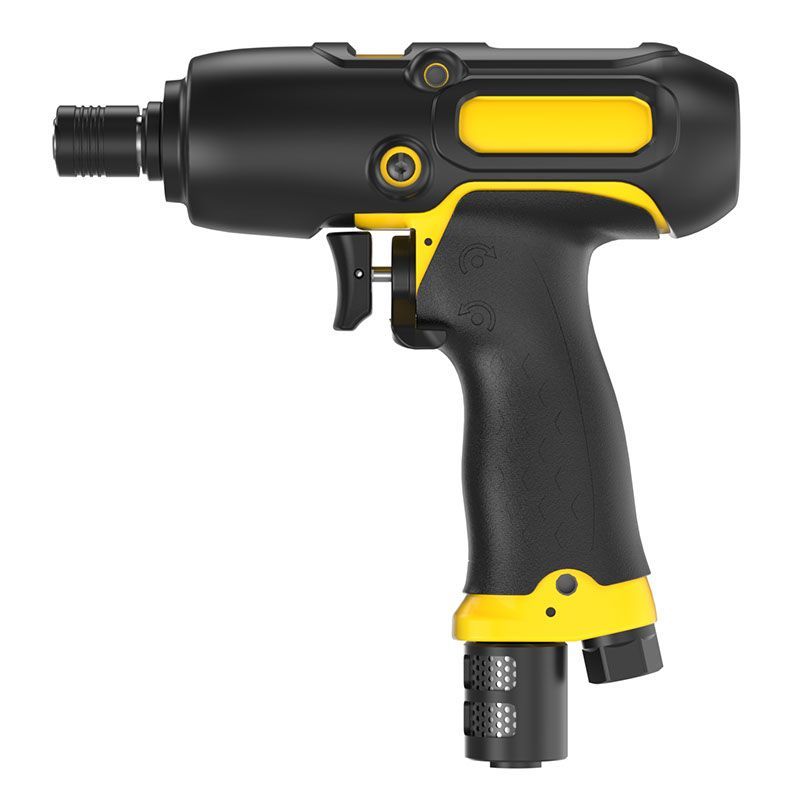

8431 0372 30 | EP5XS HR42 | Pulse Tool, 5 - 12 Nm, 8500 rpm, 1/4'' square
Overview
Atlas Copco 8431 0372 30
Ep5Xs Hr42, Ergopulse Non Shut-Off Pulse Tool, 4-9 Ft Lbs
ErgoPulse PTS is a reliable and powerful workhorse and offers the same shut-off mechanism as the peak performer PTX. All PTS models can also be used as lubrication free, just like other ErgoPulse tools.
Features:- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
(a) To be used as a guide only, final torque depends on type of joint, accessories used and air pressure.
(b) Female hexagon drive. Quick change chuck.
(c) Torque is adjusted by regulating the air pressure.
Features & Benefits
- High reliability and durability
- High speed, short cycle times.
- Lubrication free
- No springs to wear ou
Technical Specifications
Model
EP5XS HR42
Stat 1
8500 rpm
Stat 2
4 - 9 Ft Lb
Recommended Torque Range (Ft Lb)
4-9
Drive size
1/4'' hex
Manufacturer
Atlas Copco
Length (mm)
165
Min Torque (Ft Lb)
4
Max Air Consumption (cfm)
19
Free Speed (RPM)
8500
SKU
8431 0372 30
Stock Code
3
Air Inlet
1/4 in.
Style
Pistol Grip
Clutch Type
Non Shut Off
Max Torque (In Lb)
106
Max Torque (Ft Lb)
9
Min Torque (Nm)
5
Max Torque (Nm)
12
Bolt Size - mm
M5-M6
Max Free Speed (rpm)
8500
Weight (lbs)
1.8
Series
EP XS
Drive Type
1/4 in. hex
Min Hose Size (mm)
8
