Atlas Copco8431 0374 05

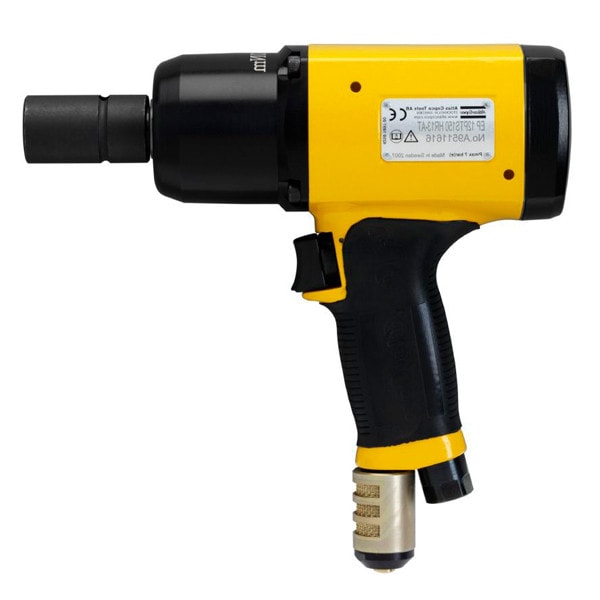

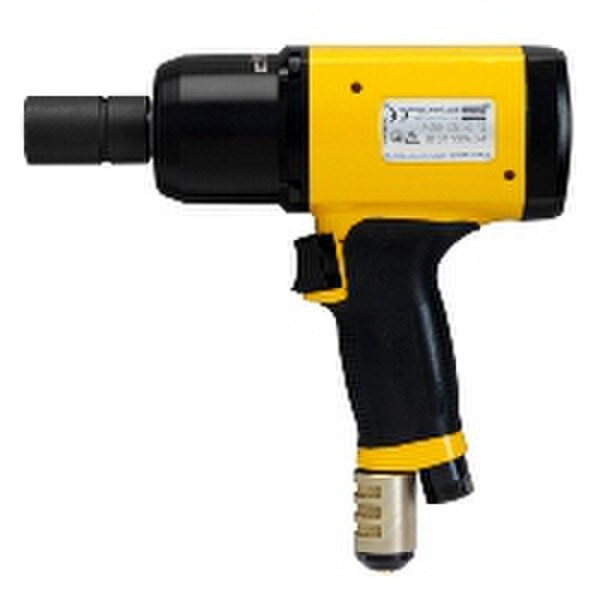

EP5PTS12 HR42-RE | Pulse Tool, TRIM-RE, 6 - 12 Nm, 5400 rpm, 1/4'' square
ErgoPulse PTS is the reliable and powerful workhorse and offers the same shut-off mechanism as the peak performer
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0374 05 | EP5PTS12 HR42-RE | Pulse Tool, TRIM-RE, 6 - 12 Nm, 5400 rpm, 1/4'' squareEP5PTS12 HR42-RE
Price on request
Details
Product information
Overview
Atlas Copco 8431 0374 05
Trim-Re, Hydraulic Pulse Tool, 4-9 Ft Lbs
ErgoPulse PTS is a reliable and powerful workhorse and offers the same shut-off mechanism as the peak performer PTX. All PTS models can also be used as lubrication free, just like other ErgoPulse tools.
Features:
- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
| Technical Specifications | |
|---|---|
| Model | EP5PTS12 HR42-RE |
| Stat 1 | 5400 rpm |
| Stat 2 | 4 - 9 Ft Lb |
| Recommended Torque Range (Ft Lb) | 4-9 |
| Drive size | 1/4'' hex |
| Manufacturer | Atlas Copco |
| Length (mm) | 196 |
| Min Torque (Ft Lb) | 4 |
| Max Air Consumption (cfm) | 14 |
| Free Speed (RPM) | 5400 |
| SKU | 8431 0374 05 |
| Stock Code | 3 |
| Air Inlet | 1/4 in. |
| Style | Pistol Grip |
| Clutch Type | Auto Shut Off |
| Max Torque (In Lb) | 106 |
| Max Torque (Ft Lb) | 9 |
| Min Torque (Nm) | 6 |
| Max Torque (Nm) | 12 |
| Bolt Size - mm | M5-M6 |
| Max Free Speed (rpm) | 5400 |
| Weight (lbs) | 2.2 |
| Series | EP PTS |
| Drive Type | 1/4 in. hex |
| Min Hose Size (mm) | 8 |
| MPN | EP5PTS12 HR42-RE |
| Features & Benefits | |
| High power-to-weight ratio | |
| High precision components | |
| Lubrication free | |
| Reporting model | |
