8431 0375 00 | EP5PTX17 HR42-RE | EP5PTX17 HR42-RE, Pulse Tool, TRIM-RE, 7 - 17 Nm, 7000 rpm, 1/4'' square
Overview

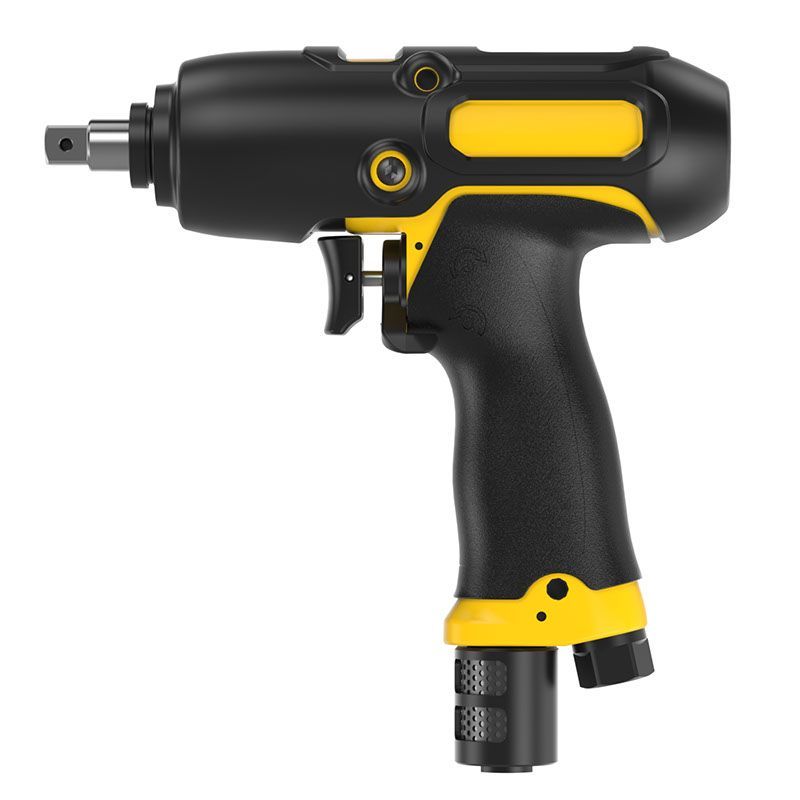

Atlas Copco 8431 0375 00
Trim-Re, Hydraulic Pulse Tool, 5-13 Ft Lbs
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
Features & Benefits
- Consistent torque over time, low meanshift.
- High power-to-weight ratio
- Reporting model
- Lubrication free
Technical Specifications
Model
EP5PTX17 HR42-RE
Stat 1
7000 rpm
Stat 2
5 - 13 Ft Lb
Recommended Torque Range (Ft Lb)
5-13
Drive size
1/4'' hex
Manufacturer
Atlas Copco
Length (mm)
164
Min Torque (Ft Lb)
5
Max Air Consumption (cfm)
15
Free Speed (RPM)
7000
SKU
8431 0375 00
Stock Code
3
Air Inlet
1/4 in.
Style
Pistol Grip
Clutch Type
Auto Shut Off
Max Torque (In Lb)
150
Max Torque (Ft Lb)
13
Min Torque (Nm)
7
Max Torque (Nm)
17
Bolt Size - mm
M6
Max Free Speed (rpm)
7000
Weight (lbs)
1.9
Series
EP PTX
Drive Type
1/4 in. hex
Min Hose Size (mm)
8
