8431 0375 04 | TRIM-RE, Hydraulic Pulse Tool, 6-14 ft lbs8431 0375 04
Price on request
Details
Product information
Overview
Atlas Copco 431 0375 04

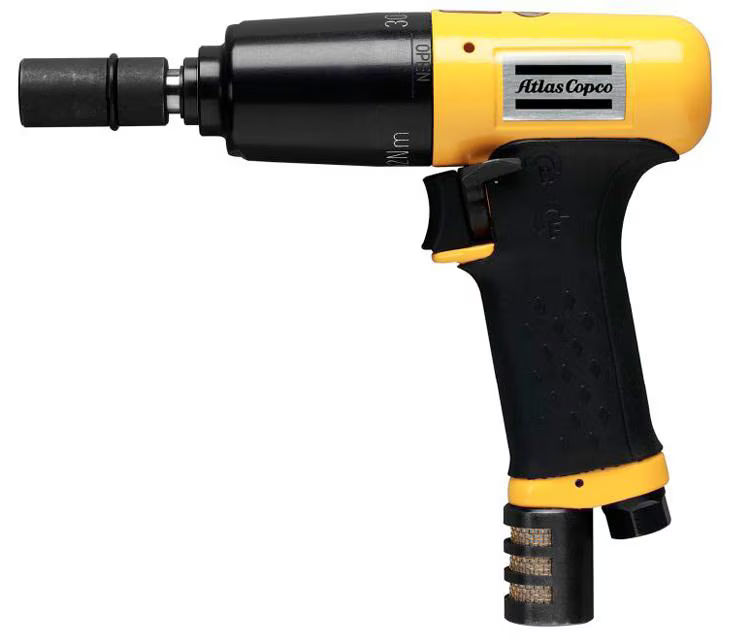

Trim-Re, Hydraulic Pulse Tool, 6-14 Ft Lbs
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:
- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
| Technical Specifications | |
|---|---|
| Stat 1 | 7000 rpm |
| Stat 2 | 6 - 14 Ft Lb |
| Recommended Torque Range (Ft Lb) | 6-14 |
| Drive size | 3/8'' square |
| Manufacturer | Atlas Copco |
| Length (mm) | 164 |
| Min Torque (Ft Lb) | 6 |
| Max Air Consumption (cfm) | 15 |
| SKU | 8431 0375 04 |
| Stock Code | 3 |
| Air Inlet | 1/4 in. |
| Style | Pistol Grip |
| Clutch Type | Auto Shut Off |
| Max Torque (In Lb) | 168 |
| Max Torque (Ft Lb) | 14 |
| Min Torque (Nm) | 8 |
| Max Torque (Nm) | 19 |
| Bolt Size - mm | M6 |
| Max Free Speed (rpm) | 7000 |
| Weight (lbs) | 1.9 |
| Drive Type | 3/8 in. square |
| Min Hose Size (mm) | 8 |
| MPN | 8431 0375 04 |
