8431 0375 40 | EP9PTX80 HR13-RE | EP9PTX80 HR13-RE, Pulse Tool, TRIM-RE, 50 - 80 Nm, 5200 rpm, 1/2'' square
Overview

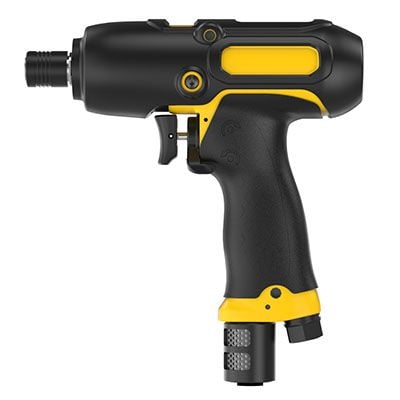

Atlas Copco 8431 0375 40
Trim-Re, Hydraulic Pulse Tool, 37-59 Ft Lbs
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
Features & Benefits
- Consistent torque over time, low meanshift.
- High power-to-weight ratio
- Reporting model
- Lubrication free
Technical Specifications
Model
EP9PTX80 HR13-RE
Stat 1
5200 rpm
Stat 2
37 - 59 Ft Lb
Recommended Torque Range (Ft Lb)
37-59
Drive size
1/2'' square
Manufacturer
Atlas Copco
Length (mm)
188
Min Torque (Ft Lb)
37
Max Air Consumption (cfm)
23
Free Speed (RPM)
5200
SKU
8431 0375 40
Stock Code
3
Air Inlet
1/4 in.
Style
Pistol Grip
Clutch Type
Auto Shut Off
Max Torque (In Lb)
708
Max Torque (Ft Lb)
59
Min Torque (Nm)
50
Max Torque (Nm)
80
Bolt Size - mm
M10
Max Free Speed (rpm)
5200
Weight (lbs)
3.3
Series
EP PTX
Drive Type
1/2 in. square
Min Hose Size (mm)
10
